39118 - Lead Wire, #18 Str TC, PPO Ins, AWM 11028 600V 105C VW-1

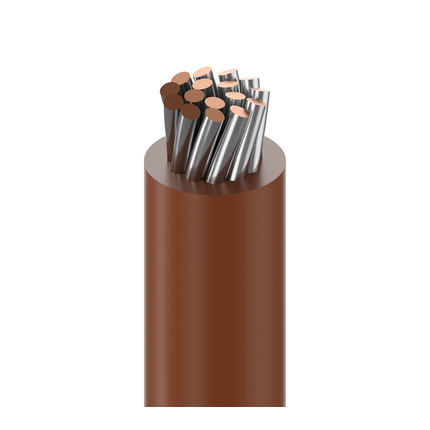

Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1

English Metric
Share

Product Overview

Suitable Applications: Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1816x30TC - Tinned Copper1
Conductor Count: 1
Insulation
MaterialNominal DiameterNominal Wall Thickness
PPO - Polyphenylene Oxide0.069 in0.012 in
Outer Jacket Material
Material
No Jacket

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Current
ElementMax. Recommended Current [A]
Single conductor in free air @ 30C ambient20.0 A
Voltage
UL Voltage Rating
600 V

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -40°C To +105°C Dry

Mechanical Characteristics

Bulk Cable Weight: 6 lbs/1000ft

Standards

UL AWM Style: AWM 11028
Military Specification: N/A

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2011-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLengthFootnote
39118 010100Black612825149446100 ftC
39118 0101000Black6128251494531,000 ftC
39118 0105000Black6128251494605,000 ftC Z
39118 013100Blue, Dark612825149477100 ftC
39118 0131000Blue, Dark6128251494841,000 ftC
39118 0135000Blue, Dark6128251494915,000 ftC Z
39118 001100Brown612825149200100 ftC
39118 0011000Brown6128251492171,000 ftC
39118 0015000Brown6128251492245,000 ftC Z
39118 008100Gray612825149385100 ftC
39118 0081000Gray6128251493921,000 ftC
39118 0085000Gray6128251494085,000 ftC Z
39118 005100Green, Dark612825149323100 ftC
39118 0051000Green, Dark6128251493301,000 ftC
39118 0055000Green, Dark6128251493475,000 ftC Z
39118 189100Green, Yellow Stripe612825149507100 ft
39118 1891000Green, Yellow Stripe6128251495141,000 ft
39118 1895000Green, Yellow Stripe6128251495215,000 ftC Z
39118 003100Orange612825149262100 ftC
39118 0031000Orange6128251492791,000 ftC
39118 0035000Orange6128251492865,000 ftC Z
39118 002100Red612825149231100 ftC
39118 0021000Red6128251492481,000 ftC
39118 0025000Red6128251492555,000 ftC Z
39118 007100Violet612825149354100 ftC
39118 0071000Violet6128251493611,000 ftC
39118 0075000Violet6128251493785,000 ftC Z
39118 009100White612825149415100 ftC
39118 0091000White6128251494221,000 ftC
39118 0095000White6128251494395,000 ftC Z
39118 004100Yellow612825149293100 ftC
39118 0041000Yellow6128251493091,000 ftC
39118 0045000Yellow6128251493165,000 ftC Z
Footnote: C - CRATE REEL PUT-UP.
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Notes

Notes: Halogen-free.

History

Update and Revision: Revision Number: 0.281 Revision Date: 08-22-2019
