32822 - Lead Wire, #22 Str TC UNISTRAND, PVC Ins, AWM 1007 CSA TYPE TR-64TEW

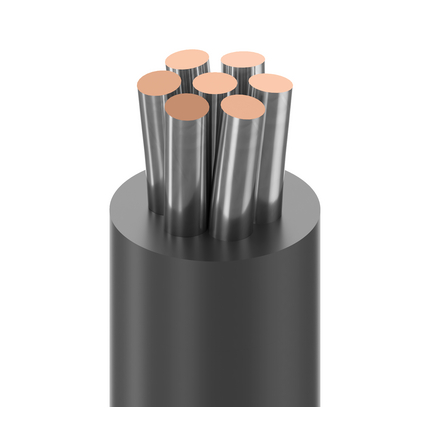

Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper Unistrand, PVC Insulation, AWM 1007 CSA TYPE TR-64 300V 90C VW-1

English Metric
Share

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30Uni-Strand® (TC - Tinned Copper)1
Conductor Count: 1
Insulation
MaterialNominal DiameterNominal Wall ThicknessMin. Average Wall Thickness
PVC - Polyvinyl Chloride0.062 in0.016 in0.015 in
Outer Jacket Material
Material
No Jacket

Electrical Characteristics

Voltage
Non-UL Voltage RatingUL Voltage Rating
300 V300 V

Temperature Range

Non-UL Temp Rating: 90°C
UL Temp Rating: 80°C

Mechanical Characteristics

Bulk Cable Weight: 3.6 lbs/1000ft

Standards

UL AWM Style: UL Style 1007 (300 V 80°C)
CSA Rating: 90°C
CSA AWM Specification: TR-64
CSA Type: TR-64
Military Specification: N/A

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-07-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLengthFootnote
32822 0105000Black6128251433075,000 ftC I U Z
32822 0055000Green, Dark6128251432845,000 ftI U Z
32822 0035000Orange6128251432775,000 ftI U Z
32822 0025000Red6128251432605,000 ftI U Z
32822 0095000White6128251432915,000 ftC I U Z
Footnote: I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'.
U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE)
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.269 Revision Date: 08-22-2019
RoHS Documentation
Date: 2005-07-01
Download
Catalog
