32410 - Lead Wire, #10 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3075

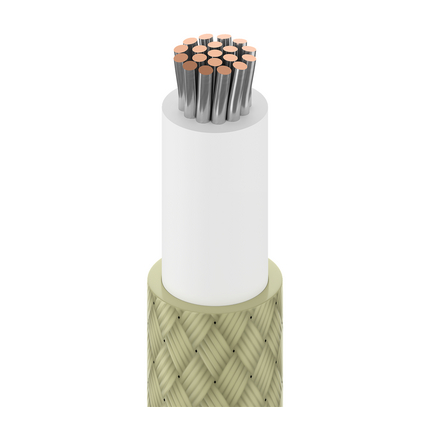

Rubber Lead Wire, 10AWG (19x22H) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3075 CSA SEW-2 600V 200C

Product Overview

Suitable Applications: Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Physical Characteristics (Overall)

AWGStrandingMaterialNo. of Conductors
1019x22HTC - Tinned Copper1
Conductor Count: 1
MaterialNominal Wall Thickness
Silicone Rubber0.045 in
Outer Jacket Material
MaterialNominal Diameter
Lacquered Glass Braid Covering0.238 in

Electrical Characteristics

UL Voltage Rating
600 V RMS

Temperature Range

Non-UL Temp Rating: 200°C
UL Temp Rating: 200°C

Mechanical Characteristics

Recommended Max Baking Cycles: 24 Hours @ 410°F (210°C)
Bulk Cable Weight: 56 lbs/1000ft
Min Bend Radius/Minor Axis: 0.96 in


UL AWM Style Compliance: UL AWM Style 3075
CSA Rating: 600 V, 200°C
CSA Type: SEW-2

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: Horizontal
CSA Flammability: FT1
UL voltage rating: 600 V RMS


Plenum (Y/N): No

Part Number

Item #ColorPutup TypeLengthUPC
32410 010500BlackReel500 ft612825142690
32410 009500WhiteReel500 ft612825142683
Footnote: C - CRATE REEL PUT-UP.

Product Notes

Notes: Recommended Maximum Baking Cycles: 24 hours @ 410°F (210°C)


Update and Revision: Revision Number: 0.311 Revision Date: 11-17-2020
Date: 2004-01-01
