30890 - Lead Wire, #1/0 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3126

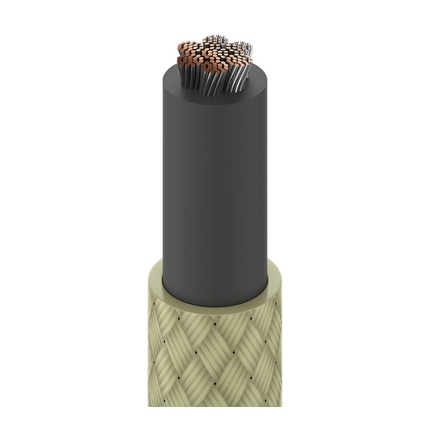

Rubber Lead Wire, 1/0AWG (262x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3126 CSA SEW-2 600V 200C

Product Overview

Suitable Applications: Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1/0262x24TC - Tinned Copper1
Conductor Count: 1
Insulation
MaterialNominal Wall ThicknessMin. Average Wall Thickness
Silicone Rubber0.080 in0.08 in
Outer Jacket Material
MaterialNominal Diameter
Lacquered Glass Braid Covering0.67 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
0.10 Ohm/1000ft
Current
ElementMax. Recommended Current [A]
Single conductor in free air @ 30C ambientSingle conductor in free air @ 30ºC: 399 A
Voltage
UL Voltage Rating
600 V RMS

Temperature Range

UL Temp Rating: 200°C
Operating Temp Range: -70°C To +200°C

Mechanical Characteristics

Recommended Max Baking Cycles: 24 Hours @ 410°F (210°C)
Bulk Cable Weight: 498 lbs/1000ft

Standards

UL AWM Style Compliance: UL AWM Style 3126
CSA Rating: 600 V, 200°C
CSA Type: SEW-2

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: Horizontal
CSA Flammability: FT1
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
30890 010100BlackReel100 ft612825141174
30890 010250BlackReel250 ft612825141181
30890 009100WhiteReel100 ft612825141150
30890 009250WhiteReel250 ft612825141167
Footnote: C - CRATE REEL PUT-UP.
F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.

History

Update and Revision: Revision Number: 0.320 Revision Date: 08-12-2020
Date: 2004-01-01
