30804 - Lead Wire, #4 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125

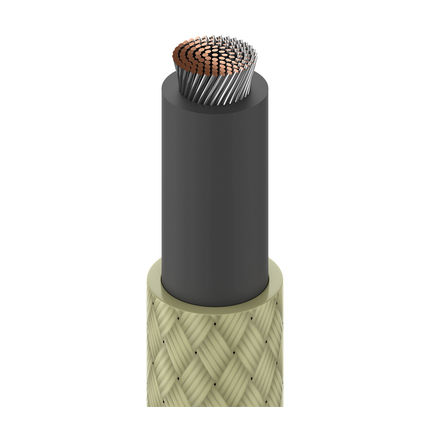

Rubber Lead Wire, 4AWG (105x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3125 CSA SEW-2 600V 200C

Product Overview

Suitable Applications: Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Construction Details

Conductor
Number of ElementSizeStrandingMaterial
14 AWG105x24TC - Tinned Copper
Insulation
MaterialNom. ThicknessNom. Insulation Diameter
Silicone Rubber0.063 in (1.6 mm)0.390 in (9.91 mm)
Outer Jacket
MaterialNom. Diameter
Lacquered Glass Braid Covering0.424 in
Overall Cable Diameter (Nominal): 0.424 in (10.8 mm)

Electrical Characteristics

Voltage
UL Voltage Rating
600 V RMS

Mechanical Characteristics

Temperature
UL TemperatureOperating
200°C-70°C To +200°C
Bend Radius
Stationary Min.Installation Min.
1.7 in (43 mm)1.7 in (43 mm)
Recommended Max Baking Cycles: 24 Hours @ 410°F (210°C)
Bulk Cable Weight: 189 lbs/1000ft

Standards and Compliance

Sustainability: CA Prop 65
Flammability / Reaction to Fire: Horizontal, FT1
AWM Compliance: AWM 3125
CEC / C(UL) Compliance: SEW-2
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.412 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
30804 010250BlackReel250 ft612825140566
30804 009250WhiteReel250 ft612825140559
