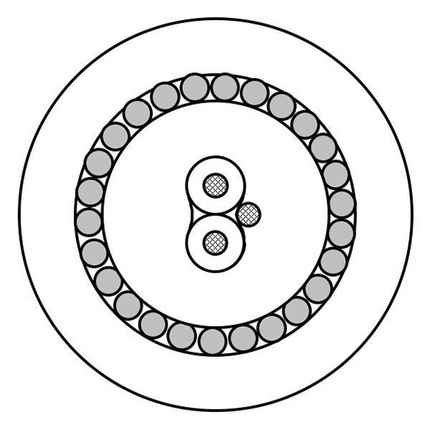

(4)Fieldbus, 1 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil(s) or Copper Tape(s) shielding, LSZH / FRNC jacket , 300V SWA
| Suitable Applications: | Instrumentation and computer cable; For data transmission applications |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 1 |
| Conductor Count: | 2 |
| Total Number of Pairs: | 1 |
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| PE - Polyethylene | 1.5 mm | 0.05 mm | 0.375 mm |
| Number | Color |
|---|---|
| Pair 1 | White & Black |
| Type | Material | Drainwire Material | Drainwire AWG |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | TC - Tinned Copper | AWG22/7 |
| Material | Color | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Orange or Blue | 7.5 mm | 2.15 mm |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 13 mm | 1.85 mm |
| Type of Armor | Material | Thickness of Armoring Wires | Coverage Percentage |
|---|---|---|---|
| Steel Wire Armoring | Galvanized steel wire | 0.9 mm | Min. 95% |
| Max. Conductor DCR | Max. Outer Shield DCR |
|---|---|
| 52.5 Ohm/km | 41.5 Ohm/km |
| Max. Capacitance Conductor to Conductor | Max. Capacitance Conductor to Shield |
|---|---|
| 85 pF/m | 160 pF/m |
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.03125 MHz | 100 Ohm | 5 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 0.01 MHz | 0.61 dB/100m |
| 0.039 MHz | 0.67 dB/100m |
| 0.1 MHz | 0.91 dB/100m |
| 0.5 MHz | 3.5 dB/100m |
| 1 MHz | 5.1 dB/100m |
| Voltage Rating [V] |
|---|
| 300 V |
| Installation Temperature Range: | -15°C To +80°C |
| Storage Temperature Range: | -45°C To +80°C |
| Operating Temp Range (Flexible Install): | -15°C To +80°C |
| Operating Temp Range (Fixed Install): | -45°C To +80°C |
| Oil Resistance: | ASTMD741 |
| Max. Pull Tension: | 50 N |
| Min. Bend Radius During Installation: | 140 mm |
| Environmental Space: | Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Eca |
| IEC Flammability: | IEC 60332-3-24 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 3077ELS.01500 | Black | Reel | 500 m | 8719605005595 |
| 3077ELS.011000 | Black | Reel | 1,000 m | 8719605005588 |
| Update and Revision: | Revision Number: 0.216 Revision Date: 02-03-2025 |
