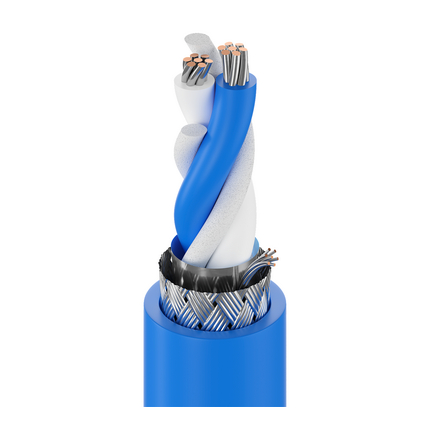

(109)Twinax 100Ω, 1 Pair 18 AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, PVC Outer Jacket, TC, PLTC, ITC, CMG
| Suitable Applications: | Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
| Element | No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|---|
| Pair(s) | 1 | 18 AWG | 7x26 | 0.046 in | TC - Tinned Copper |
| Element | Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.128 in (3.25 mm) | White & Blue | Flame Retardant |
| Layer | Outer Shield Type | Material | Material Trade Name | Coverage | Notes |
|---|---|---|---|---|---|
| 1 | Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | Foil Out |
| 2 | Braid | Tinned Copper (TC) | 55% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.388 in (9.86 mm) |
| Overall Cable Diameter (Nominal): | 0.388 in (9.86 mm) |
| Frequency | Nom. Attenuation |
|---|---|
| 2 MHz | 0.41 dB/100ft |
| 10 MHz | 1.33 dB/100ft |
| 50 MHz | 2.97 dB/100ft |
| 100 MHz | 4.20 dB/100ft |
| 200 MHz | 5.95 dB/100ft |
| 400 MHz | 7.52 dB/100ft |
| Element | Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Cond (Mutual) | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| Pair(s) | 6.9 Ohm/1000ft | 2.9 Ohm/1000ft (9.5 Ohm/km) | 15.3 pF/ft (50.2 pF/m) | 100 Ohm | 65% |
| UL Voltage Rating |
|---|
| 600 V (TC), 300 V (CMG, PLTC) |
| UL Temperature | Operating |
|---|---|
| 75°C Dry, PLTC 75°C Dry/Wet | -40°C to +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 3.2 in (81 mm) | 2.4 in (61 mm) |
| Max. Pull Tension: | 90 lbs (41 kg) |
| Bulk Cable Weight: | 77 lbs/1000ft |
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger wire |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL1685 UL Loading, FT1 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 336, Article 725, Article 727, Article 800, CMG, ITC, PLTC, TC |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | Cable contains rod fillers for better electrical performance. CPE Jacket Optional. |
| Update and Revision: | Revision Number: 0.485 Revision Date: 02-15-2024 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 3073F C551000 | Blue, Cairo | Reel | 1,000 ft | 612825140139 | C |
| 3073F C555000 | Blue, Cairo | Reel | 5,000 ft | 612825140146 | C N |
