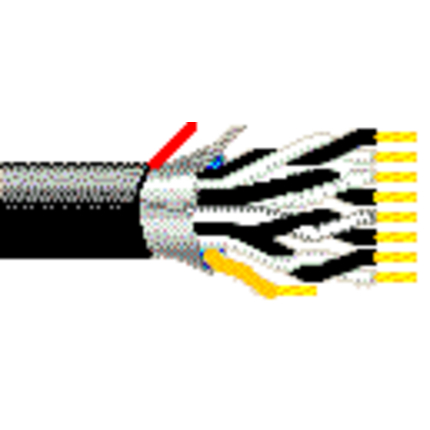

3034A - Inst, 16 Pr #18+1c #22 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC-ER ITC-ER CMG


UL Instrumentation, 16 Pair 18+22AWG (7x26+7x30) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC-ER ITC-ER CMG AWM 2464 SUN RES DIR BUR

Product Overview

Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)16187x26BC - Bare Copper
Comm Wire1227x30BC - Bare Copper
Insulation
ElementMaterialThickness [in.]Color Code
Pair(s)PVC - Polyvinyl Chloride0.017Black, White and Numbered
Comm WirePVC - Polyvinyl Chloride0.019Orange
Outer Shield Material
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%18 AWG (7x26) TC
Outer Jacket Material
MaterialThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.063 in0.769 inYes
Cable Diameter (Nominal): 0.769 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCR
Pair(s)
Comm Wire14.7 Ohm/1000ft
Nom Outer Shield DCR: 4.0 Ohm/1000ft
Voltage
UL Voltage Rating
300 V (CMG, PLTC-ER, UL AWM 2464), 150 V (ITC-ER)

Mechanical Characteristics

Temperature
UL RatingOperating
105°C-30°C to +105°C
Bend Radius
Installation Min.
7.7 in
Max. Pull Tension: 640 lbs
Bulk Cable Weight: 330 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, 1202
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, PLTC-ER, ITC-ER
AWM Compliance: 2464
CEC / C(UL) Compliance: CMG

History

Update and Revision: Revision Number: 0.38 Revision Date: 09-30-2020
