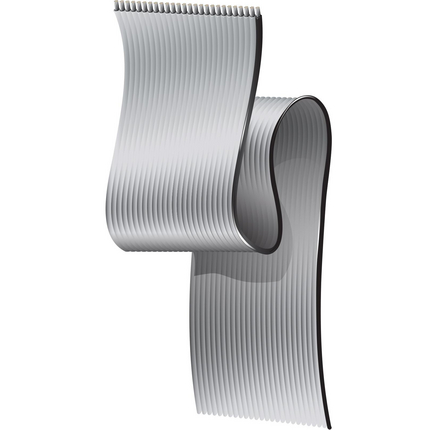

Belden 1.00mm pitch gray ribbon cable was designed for the disk drive market where the 2.00mm IDC connector is widely used.

Compare

Physical Characteristics (Overall)

Conductor

AWG	Material	Construction n x D	No. of Conductors
28	TC - Tinned Copper	Stranded	50

Conductor Count:	50

Insulation

Material	Nominal Wall Thickness
PVC - Polyvinyl Chloride	0.01 in

Color Chart

Color
Gray

Outer Shield Material

Material
No Shield

Outer Jacket Material

Nominal Wall Thickness
1.35 mm

Construction and Dimensions

Cond Spacing Center-Center:	1.0 +/- .08 mm

Cond Spacing Center-Center Outside:	48.99 +/- .30 mm

OuterJacket1, Nominal Width:	1.964 +/- .012 mm

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	Nominal Conductor DCR Conductor Resistance
68.2 Ohm/1000ft	68.2 Ohm/1000ft

Capacitance

Element	Nom. Capacitance Conductor to Conductor
@ 1 kHz (GSG)	20 pF/ft
@ 1 MHz (GS)	9.5 pF/ft
@ 1 MHz (GSG)	16.5 pF/ft

Inductance

Element	Nominal Inductance
@ 1 MHz (GS)	0.24 µH/ft
@ 1 MHz (GSG)	0.16 µH/ft

Impedance

Nominal Balanced Characteristic Impedance Description	Nominal Characteristic Impedance	Nominal Characteristic Impedance Description
(GS)	130 Ohm	(GS)
(GSG)	90 Ohm	(GSG)

High Frequency (Nominal/Typical)

Frequency [MHz]	Nom. Insertion Loss
10 MHz	3.3 dB/100ft
20 MHz	5.1 dB/100ft
30 MHz	7 dB/100ft
40 MHz	8.3 dB/100ft
50 MHz	9.8 dB/100ft
60 MHz	11.6 dB/100ft
70 MHz	13.1 dB/100ft
80 MHz	14.2 dB/100ft
90 MHz	16.4 dB/100ft
100 MHz	17.6 dB/100ft

Delay

Nominal Delay	Nominal Velocity of Propagation (VP) [%]
1.47 ns/ft	69%

Unbalanced Crosstalk

Element	Typical Unbalanced NEXT %	Typical Unbalanced FEXT %	Typical Cross Talk Pulse Rise Time (ns)
10 ft. sample length	4.3 MHz	6.7 MHz	3 ns
10 ft. sample length	3.8 MHz	3.4 MHz	5 ns
10 ft. sample length	3.6 MHz	2.5 MHz	7 ns

High Freq

Frequency [MHz]	Max. Insertion Loss (Attenuation)
10 MHz	1.4 dB/100m
20 MHz	1.33 dB/100m
30 MHz
40 MHz
50 MHz
60 MHz
70 MHz
80 MHz
90 MHz
100 MHz

Current

Max. Recommended Current [A]
Per conductor @ 20°C: 1 A

Voltage

Dielectric Withstand Voltage	UL Voltage Rating
2,000 V RMS	300 V RMS

Electrical Characteristics Notes:	Dielectric Withstand Voltage: 2000 Vrms

Temperature Range

Operating Temp Range:	-40°C To +105°C

Mechanical Characteristics

Bulk Cable Weight:	57 lbs/1000ft

Min Bend Radius During Installation:	1.4 in

Min Bend Radius/Minor Axis:	1.4 in

Dimensions (WxHxD)

Height	Depth
1.41	1.378

Standards

UL Rating:	AWM Style 2651

UL AWM Style:	2651

CSA Rating:	I A

CSA AWM Specification:	I A

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV):	Yes

EU Directive 2011/65/EU (ROHS II):	Yes

EU Directive 2012/19/EU (WEEE):	Yes

EU Directive 2015/863/EU:	Yes

EU Directive Compliance:	Yes

EU CE Mark:	Yes

EU RoHS Compliance Date (yyyy-mm-dd):	2005-07-01

MII Order #39 (China RoHS):	Yes

Flammability, LS0H, Toxicity Testing

UL Flammability:	VW-1

CSA Flammability:	FT1

UL voltage rating:	300 V RMS

Plenum/Non-Plenum

Plenum (Y/N):	No

Part Number

Variants

Item #	Color	Length	UPC
2L28050 008H100	Gray	100 ft	612825127567

Product Notes

Notes:	GSG=Ground-Signal-Ground Mode

History

Update and Revision:	Revision Number: 0.240 Revision Date: 04-28-2020

Date: 2005-07-01

Download

No accessories are available for this product

2L28050 - Flat Gray Ribbon Cable 2L280XX Series, #28-50c, 1mm Pitch, PVC Jkt
