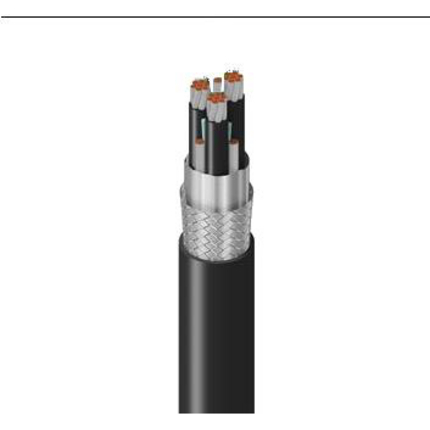

(4)Belden Premium VFD, 12 AWG (105 x 30) Tinned Copper, 3 Conductor, XLPE Insulation M4 Color Code, Duofoil Beldfoil Shield With 3 #14 AWG (41 x 30) Tinned Copper Drain Wire, Overall Beldfoil® (100%) + Tinned Copper Braid Coverage (85%), Black Outer PVC Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V, CSA AWM I/II A/B Sun Res Dir Bur Oil Resistant.
| Suitable Applications: | Variable Frequency Drives (VFD); AC Motor and Drive Systems; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA |
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 10 AWG | 65x30 | ASTM B3 Copper B8 Class B Stranding | |
| Segmented Ground Wire | 3 | 14 AWG | 65x34 | 3 Ground Segments Totaling 10+ AWG | |
| TC - Tinned Copper | |||||
| TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.030 in (0.76 mm) | 0.184 in (4.67 mm) | ICEA Chart M4 |
| Ground Wire | No Insulation |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Tinned Copper (TC) | 100% | 14 AWG (41x30) TC |
| Braid | Tinned Copper (TC) | 85% |
| Material | Nom. Thickness |
|---|---|
| XLPE - Cross-Linked Polyethylene (Thermoset) | 0.047 in (1.2 mm) |
| Overall Cable Diameter (Nominal): | 0.517 in (13.1 mm) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Conductor(s) | 0.895 Ohm/1000ft (2.94 Ohm/km) | 31 pF/ft (100 pF/m) | 60 pF/ft (200 pF/m) | 50 Ohm | 55% | 40 Amps per Conductor at 30C |
| 0.90 Ohm/1000ft (3.0 Ohm/km) |
| UL Voltage Rating |
|---|
| 600/1000 V (TC-ER) |
| UL Temperature | Operating |
|---|---|
| 90°C Dry, 90°C Wet | -20°C To +90°C |
| Stationary Min. | Installation Min. |
|---|---|
| 3.878 in (98.50 mm) | 3.878 in (98.50 mm) |
| Max. Pull Tension: | 400 lbs (180 kg) |
| Bulk Cable Weight: | 263 lbs/1000ft |
| Environmental Suitability: | Indoor, Sunlight Resistance |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1685 UL Loading, IEEE 1202 FT4 |
| NEC / UL Compliance: | Article 336, TC-ER |
| ICEA Compliance: | S-95-658 |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | P-07-KA070003-MSHA |
| Update and Revision: | Revision Number: 0.9 Revision Date: 05-05-2025 |
