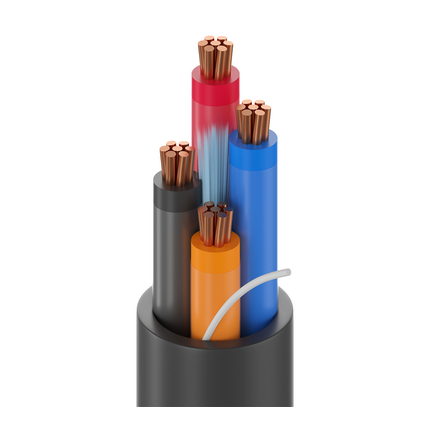

(13)28082A - 600V Tray, (4) 14 AWG (7x22) BC, PVC-NYL/PVC, TC-ER
Four 14 AWG stranded (7x22) bare copper conductors, PVC/Nylon insulation, PVC jacket.
Physical Characteristics (Overall)
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 14 | 7x22 | BC - Bare Copper | 4 |
| Conductor Count: | 4 |
| Conductor Size: | 14 AWG |
| Material |
|---|
| PVC/Nylon - Polyvinyl Chloride/Nylon |
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| 3 | Blue |
| 4 | Orange |
| Material |
|---|
| Unshielded |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.374 in | 0.047 in |
Electrical Characteristics
| Nominal Conductor DCR |
|---|
| 2.52 Ohm/1000ft |
| Max. Recommended Current [A] |
|---|
| 20 Amps per conductor @ 30°C |
| UL Description | UL Voltage Rating |
|---|---|
| NPLF | 150 V RMS |
| TC | 600 V RMS |
Temperature Range
| UL Temp Rating: | 75°C Dry, 90°C Wet |
| Operating Temp Range: | -30°C To +90°C |
| Wet Temp Range: | -30°C To +75 °C |
| Dry Temp Range: | -30°C To +90 °C |
Mechanical Characteristics
| Bulk Cable Weight: | 99 lbs/1000ft |
| Max Recommended Pulling Tension: | 129 lbs |
| Min Bend Radius/Minor Axis: | 3.75 in |
Standards
| NEC/(UL) Specification: | NPLF, TC-ER, THHN/THWN Singles |
| Other Standards: | ICEA S-73-532, S-5-658, S-61-402 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2005-04-01 |
| CA Prop 65 (CJ for Wire & Cable): | Yes |
| MII Order #39 (China RoHS): | Yes |
Suitability
| Suitability - Burial: | Yes |
| Suitability - Sunlight Resistance: | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: | UL1685 Vertical Tray Flame Test |
| CSA Flammability: | FT4 |
| IEEE Flammability: | 1202 |
| UL voltage rating: | 150 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N): | No |
Part Number
| Item # | Color | Footnote |
|---|---|---|
| 28082A 01010000 | Black | C Z |
| 28082A 0105000 | Black | C Z |
| Footnote: | C - CRATE REEL PUT-UP. |
| Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
