28081A - 600V Tray, (3) 14 AWG (7x22) BC, PVC-NYL/PVC, TC-ER

28081A-600V Tray, (3) 14 AWG &

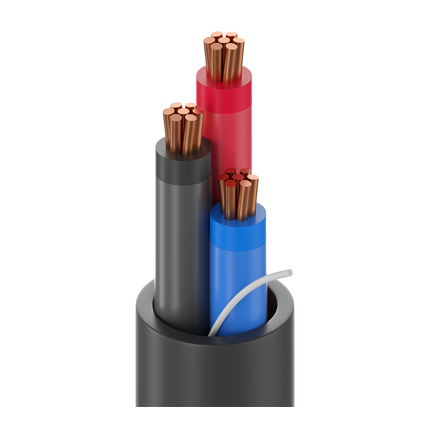

Three 14 AWG stranded (7x22) bare copper conductors, PVC/Nylon insulation, PVC jacket.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
147x22BC - Bare Copper3
Conductor Count: 3
Conductor Size: 14 AWG
Insulation
MaterialNominal Diameter
PVC/Nylon - Polyvinyl Chloride/Nylon0.116 in
Color Chart
NumberColor
1Black
2Red
3Blue
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.346 in0.047 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.52 Ohm/1000ft
Shielding: Unshielded
Current
Max. Recommended Current [A]
25 Amps per conductor @ 30C
Voltage
UL DescriptionUL Voltage Rating
NPLF150 V RMS
TC600 V RMS

Temperature Range

UL Temp Rating: 75°C Dry, 90°C Wet
Wet Temp Range: -30°C To +75 °C
Dry Temp Range: -30°C To +90 °C

Mechanical Characteristics

Bulk Cable Weight: 80 lbs/1000ft
Max Recommended Pulling Tension: 97 lbs
Min Bend Radius/Minor Axis: 3.5 in

Standards

NEC Articles: 336
NEC/(UL) Specification: NPLF, TC-ER, THHN, THWN
Other Specification: ICEA S-73-532, S-95-658, S-61-402

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Burial: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
CSA Flammability: FT4
IEEE Flammability: 1202
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
28081A 0105000BlackC Z
28081A 01010000BlackC Z
Footnote: C - CRATE REEL PUT-UP.
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
Date: 2005-04-01
