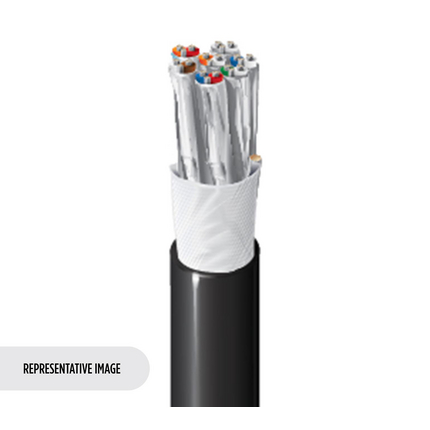

(10)Indoor/Outdoor Stadium Cable, 12 Pair 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, twisted Pairs individually shielded with Beldfoil® (100% coverage) with 22 AWG stranded tinned copper drain wire, waterblocking tape, overall CPE jacket
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|---|
| Pair(s) | 22 | 7x30 | TC - Tinned Copper | 0.029 in | 12 |
| Conductor Count: | 24 |
| Element | Material | Nominal Wall Thickness |
|---|---|---|
| Pair(s) | PP - Polypropylene | 0.011 in |
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| 3 | Black & Green |
| 4 | Black & Blue |
| 5 | Black & Yellow |
| 6 | Black & Brown |
| 7 | Black & Orange |
| 8 | Red & White |
| 9 | Red & Green |
| 10 | Red & Blue |
| 11 | Red & Yellow |
| 12 | Red & Brown |
| Element | Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|---|
| Pair(s) | Tape | Alum / Poly | Beldfoil® (Z-Fold®) | 100% | TC - Tinned Copper | 22 |
| Material |
|---|
| No Shield |
| Material | Nominal Diameter |
|---|---|
| CPE - Chlorinated Polyethylene | 0.500 in |
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR |
|---|---|
| 10.6 Ohm/1000ft | 15 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield | Nom. Capacitance Conductor to Shield |
|---|---|---|
| 30 pF/ft | 55 pF/ft | 16.9 pF/m |
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
| Max. Recommended Current [A] |
|---|
| 1.4 Amps per conductor @ 25°C A |
| UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temp Rating: | 75°C |
| Operating Temp Range: | -20°C To +75°C |
| UV Resistance: | Yes |
| Bulk Cable Weight: | 135 lbs/1000ft |
| Max Recommended Pulling Tension: | 320 lbs |
| Min Bend Radius/Minor Axis: | 5 in |
| NEC/(UL) Specification: | CMR |
| Environmental Space: | Indoor/Outdoor |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU: | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2004-01-01 |
| Suitability - Aerial: | Yes - When supported by messenger wire |
| Suitability - Burial: | No |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| UL Flammability: | UL1666 Vertical Tray |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 2768RW 0101000 | Black | Reel | 1,000 ft | 612825387442 |
| 2768RW 0105000 | Black | Reel | 5,000 ft | 612825387459 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
| Notes: | Water blocking tape between cabled pairs and outer jacket. Print legend includes sequential footage marks. |
