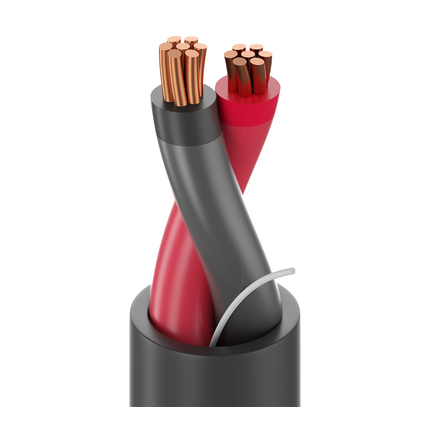

27138A - TC VN/PVC, 2 C #10 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC 90C Wet/Dry SUN RES DIR BUR




UL Type TC (1277) PVC-Nylon/PVC, 2 Conductor 10AWG (7x18) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 90C Wet/Dry SUN RES DIR BUR

Product Overview

Suitable Applications: Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations

Construction Details

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Conductor(s)210 AWG7x18BC - Bare Copper
Insulation
ElementSeparatorMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)Conductor(s)PVC/Nylon - Polyvinyl Chloride + Nylon0.028 in (0.71 mm)0.166 in (4.22 mm)Black, Red
Inner Shield
Shield Type
No Shield
Outer Shield
Shield Type
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.047 in (1.2 mm)0.26 x 0.426 inYes
Overall Cable Diameter (Nominal): 0.26 x 0.426 in

Electrical Characteristics

Electricals
Nom. Conductor DCRMax. Current
1.06 Ohm/1000ft40 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
600 V (TC)

Mechanical Characteristics

Temperature
UL TemperatureOperating
90°C Dry, 90°C WetWet/Dry: -30°C to 90°C
Bend Radius
Stationary Min.Installation Min.
0.44 in (11 mm)0.55 in (14 mm)
Max. Pull Tension: 293.6 lbs (133.2 kg)
Bulk Cable Weight: 106 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance: Article 336, TC, THWN-2
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Flat/Parallel Construction; Overall shield not available

History

Update and Revision: Revision Number: 0.622 Revision Date: 02-03-2025

Part Numbers

Variants
Item #ColorPutup TypeLengthUPCFootnote
27138A 0105000BlackReel5,000 ft612825133162
27138A 01010000BlackReel10,000 ft612825133155C
Date: 2005-04-01
