25000UE - Security & Sound, #12-2c, BC, Unshielded, CMR

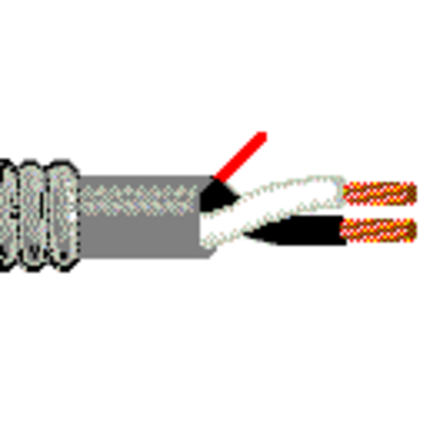

Security & Commercial Audio Cable, Riser-CMR, 2-12 AWG stranded bare copper conductors with PVC insulation, PVC jacket with ripcord, Aluminum interlocking armor

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1219x25BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.011 in
Color Chart
NumberColor
1Black
2White
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.260 in0.017 in
Outer Shield Material
Material
No Shield
Outer Jacket Material
Ripcord
Yes

Construction and Dimensions

Cabling
Twists
2.7 twist/ft
Armor
Type of ArmorMaterialDiameter over Armoring
InterlockedAluminum0.471 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor Resistance
1.6 Ohm/1000ft1.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
24 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 12 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 106 lbs/1000ft
Max. Pull Tension: 210 lbs
Min Bend Radius/Minor Axis: 5.7 in

Standards

NEC Articles: Article 725, Article 760
NEC/(UL) Compliance: CL3R, FPLR

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2007-07-12
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
25000UE 0001000NoneReel1,000 ft612825131991
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.218 Revision Date: 06-01-2020
Date: 2007-07-12
No accessories are available for this product
