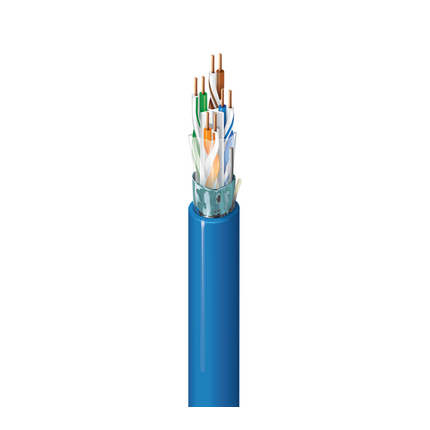

2413F - CAT6+ Horizontal, 4pr, F/UTP, LS-PVC Jkt, CMP


CAT6+ (350MHz), 4-Pair, F/UTP-foil shielded, Plenum-CMP, Premise Horizontal cable, 23 AWG solid bare copper conductors, FEP/PO insulation, patented X-spline, overall Beldfoil® shield, Flamarrest® jacket

Product Overview

Environmental Space: Plenum
Suitable Applications: Networking Horizontal Cable, HDBaseT, 1000Base-T (Gigabit Ethernet), 100Base-T (Fast Ethernet), 10Base-T (Ethernet), 100BaseVG, ANYLAN, 155ATM, 622ATM, ANSI.X3.263 FDDI TP-PMD, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, 250 MHz Category 6

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
23SolidBC - Bare Copper4
Conductor Count: 8
Total Number of Pairs: 4
Conductor Size: 23 AWG
Insulation
Material
FEP - Fluorinated Ethylene Propylene
Bonded-Pair: N/A
Color Chart
NumberColor
1White/Blue Stripe & Blue
2White/Orange Stripe & Orange
3White/Green Stripe & Green
4White/Brown Stripe & Brown
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper24Solid
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterRipcordSeparator Material
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.310 inNoPolyester Tape

Construction and Dimensions

Cabling
Filler
Patented Central X-Spline

Electrical Characteristics

Conductor DCR
Max. Conductor DCRMax. DCR Unbalance
93.8 Ohm/km5 %
Capacitance
Max. Capacitance UnbalanceNom.Mutual Capacitance
330 pF/100m14 pF/ft
Delay
Frequency [MHz]Max. DelayMax. Delay SkewNominal Velocity of Propagation (VP) [%]
100 MHz537.6 ns/100m45 ns/100m72 %
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted)Max./Min. Fitted ImpedanceMin. TCL [dB]Min. ELTCTL [dB]
0.772 MHz1.8 dB/100m77.0 dB77.0 dB75.2 dB76.2 dB73.0 dB70.0 dB19.4 dB100 +/- 15100 ± 15 Ohm40.0 dB37.2 dB
1 MHz2.0 dB/100m75.3 dB75.3 dB73.3 dB74.3 dB70.8 dB67.8 dB20.0 dB100 +/- 15100 ± 15 Ohm40.0 dB35.0 dB
4 MHz3.7 dB/100m66.3 dB66.3 dB62.6 dB63.6 dB58.8 dB55.8 dB23.0 dB100 +/- 15100 ± 15 Ohm40.0 dB23.0 dB
8 MHz5.2 dB/100m61.8 dB61.8 dB56.6 dB57.6 dB52.7 dB49.7 dB24.5 dB100 +/- 15100 ± 15 Ohm40.0 dB16.9 dB
10 MHz5.8 dB/100m60.3 dB60.3 dB54.5 dB55.5 dB50.8 dB47.8 dB25.0 dB100 +/- 15100 ± 15 Ohm40.0 dB15.0 dB
16 MHz7.4 dB/100m57.2 dB57.2 dB49.9 dB50.9 dB46.7 dB43.7 dB25.0 dB100 +/- 15100 ± 15 Ohm38.0 dB10.9 dB
20 MHz8.3 dB/100m55.8 dB55.8 dB47.5 dB48.5 dB44.8 dB41.8 dB25.0 dB100 +/- 15100 ± 15 Ohm37.0 dB9.0 dB
25 MHz9.3 dB/100m54.3 dB54.3 dB45.1 dB46.1 dB42.8 dB39.8 dB24.3 dB100 +/- 15100 ± 15 Ohm36.0 dB7.0 dB
31.25 MHz10.4 dB/100m52.9 dB52.9 dB42.5 dB43.5 dB40.9 dB37.9 dB23.6 dB100 +/- 15100 ± 15 Ohm35.1 dB5.1 dB
62.5 MHz15.0 dB/100m48.4 dB48.4 dB33.4 dB34.4 dB34.9 dB31.9 dB21.5 dB100 +/- 15100 ± 15 Ohm32.0 dB
100 MHz19.3 dB/100m45.3 dB45.3 dB26.0 dB27.0 dB30.8 dB27.8 dB20.1 dB100 +/- 15100 ± 15 Ohm30.0 dB
155 MHz24.6 dB/100m42.4 dB42.4 dB17.9 dB18.9 dB27.0 dB24.0 dB19.5 dB100 +/- 22100 ± 15 Ohm28.1 dB
200 MHz28.3 dB/100m40.8 dB40.8 dB12.5 dB13.5 dB24.8 dB21.8 dB18.7 dB100 +/- 22100 ± 15 Ohm27.0 dB
250 MHz32.1 dB/100m39.3 dB39.3 dB7.2 dB8.2 dB22.8 dB19.8 dB18.0 dB100 +/- 32100 ± 15 Ohm26.0 dB
300 MHz35.6 dB/100m38.1 dB36.1 dB2.5 dB1.5 dB21.3 dB18.3 dB17.5 dB100 +/- 32100 ± 15 Ohm25.2 dB
350 MHz38.9 dB/100m37.1 dB35.1 dB19.9 dB16.9 dB17.0 dB100 +/- 32100 ± 15 Ohm24.6 dB
400 MHz42.0 dB/100m36.3 dB34.3 dB18.8 dB15.8 dB16.6 dB100 +/- 32100 ± 15 Ohm24.0 dB
450 MHz45.0 dB/100m35.5 dB33.5 dB17.7 dB14.7 dB16.2 dB100 +/- 32100 ± 15 Ohm23.5 dB
500 MHz47.9 dB/100m34.8 dB32.8 dB16.8 dB13.8 dB15.9 dB100 +/- 3223.0 dB
550 MHz50.6 dB/100m34.2 dB32.2 dB16.0 dB13.0 dB15.6 dB100 +/- 3222.6 dB
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temp Range: 0°C To +50°C
UL Temp Rating: 75°C
Storage Temp Range: -20°C To +75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 44 lbs/1000ft
Max Recommended Pulling Tension: 25 lbs
Min Bend Radius During Installation: 2.25 in
Min Bend Radius/Minor Axis: 1.0 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
CPR Euroclass: Eca
Data Category: Category 6
ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Third Party Performance Verification: Category 6

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2017-07-10
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: No
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Non-Halogenated: No
Suitability - Oil Resistance: No
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum (UL 910)
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 2412F
Variants
Item #ColorUPCLength
2413F 0101000Black6128251316011,000 ft
2413F D151000Blue6128251315261,000 ft
2413F D15A500Blue612825131519500 ft
2413F 0081000Gray6128251315711,000 ft
2413F 0051000Green6128251315641,000 ft
2413F 0031000Orange6128251315401,000 ft
2413F 0021000Red6128251315331,000 ft
2413F 0091000White6128251315951,000 ft
2413F 009A500White612825131588500 ft
2413F 0041000Yellow6128251315571,000 ft
Patent: https://www.belden.com/resources/patents

Product Notes

Notes: Values above 300 MHz are for Engineering Information Only. Shield is Bonded to Jacket Inner Wall for Electrical Stability. Print Includes Descending Footage Markings from Max. Put-Up Length to 0.
Date: 2004-01-01
