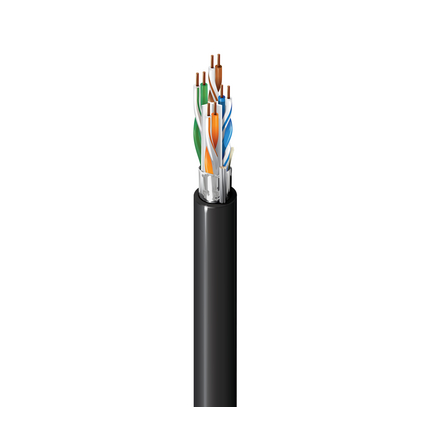

2412FS - Category 6+ Enhanced Cable, 4 Pair, F/UTP, CMR


Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket

Product Overview

Suitable Applications: Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE, Noisy Environments
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
SizeStrandingMaterialNumber of Pairs
23 AWGSolidBC - Bare Copper4
Insulation
MaterialColor Code
PO - PolyolefinWhite/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapePolyester + Bi-Laminate (Alum+Poly)100%26 AWG (7x34) TC
Outer Jacket
SeparatorMaterialNom. DiameterRipcord
Center Member (Patented X-Spline®)PVC - Polyvinyl Chloride0.265 in (6.73 mm)No
Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)

Electrical Characteristics

Electricals
Max. Conductor DCRMax. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft)330 pF/100m
Delay
FrequencyMax. DelayMax. Delay SkewNom. Velocity of Prop.
100 MHz537.6 ns/100m45 ns/100m68%
High Frequency
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted) [Ohm]Max./Min. Fitted Impedance [Ohm]Min. TCL [dB]Min. ELTCTL [dB]
0.7721.8 dB/100m77.077.075.276.273.070.019.4100 +/- 15100 ± 1540.037.2
12.0 dB/100m75.375.373.374.370.867.820.0100 +/- 15100 ± 1540.035.0
43.7 dB/100m66.366.362.663.658.855.823.0100 +/- 15100 ± 1540.023.0
85.2 dB/100m61.861.856.657.652.749.724.5100 +/- 15100 ± 1540.016.9
105.8 dB/100m60.360.354.555.550.847.825.0100 +/- 15100 ± 1540.015.0
167.4 dB/100m57.257.249.950.946.743.725.0100 +/- 15100 ± 1538.010.9
208.3 dB/100m55.855.847.548.544.841.825.0100 +/- 15100 ± 1537.09.0
259.3 dB/100m54.354.345.146.142.839.824.3100 +/- 15100 ± 1536.07.0
31.2510.4 dB/100m52.952.942.543.540.937.923.6100 +/- 15100 ± 1535.15.1
62.515.0 dB/100m48.448.433.434.434.931.921.5100 +/- 15100 ± 1532.0
10019.3 dB/100m45.345.326.027.030.827.820.1100 +/- 15100 ± 1530.0
15524.6 dB/100m42.442.417.918.927.024.019.5100 +/- 22100 ± 1528.1
20028.3 dB/100m40.840.812.513.524.821.818.7100 +/- 22100 ± 1527.0
25032.1 dB/100m39.339.37.28.222.819.818.0100 +/- 32100 ± 1526.0
30035.6 dB/100m38.136.12.51.521.318.317.5100 +/- 32100 ± 1525.2
35038.9 dB/100m37.135.119.916.917.0100 +/- 32100 ± 1524.6
40042.0 dB/100m36.334.318.815.816.6100 +/- 32100 ± 1524.0
45045.0 dB/100m35.533.517.714.716.2100 +/- 32100 ± 1523.5
50047.9 dB/100m34.832.816.813.815.9100 +/- 3223.0
55050.6 dB/100m34.232.216.013.015.6100 +/- 3222.6
Voltage
UL Voltage Rating
300 V (CMR)

Mechanical Characteristics

Temperature
UL TemperatureOperatingStorage
75°C-20°C To +75°C-20°C To +75°C
Bend Radius
Stationary Min.Installation Min.
1.0 in (25 mm)2.65 in (67.3 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 37 lbs/1000ft

Standards and Compliance

Environmental Suitability: Riser, Indoor
Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMR
ICEA Compliance: S-116-732-2013
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance: ANSI/NEMA WC-66
Data Category: Category 6
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6
Third Party Performance Verification: Category 6
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 2413FS

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 300 MHz are for Engineering Information Only. Shield is Bonded to Jacket Inner Wall for Electrical Stability. Print Includes Descending Footage Markings from Max. Put-Up Length to 0.

History

Update and Revision: Revision Number: 0.12 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeLength
2412FS 0101000BlackReel1,000 ft
2412FS 010A1000BlackReel-in-Box1,000 ft
2412FS 010Z1000BlackReelTuff Box1,000 ft
2412FS 0061000Blue, LightReel1,000 ft
2412FS 006A1000Blue, LightReel-in-Box1,000 ft
2412FS 006Z1000Blue, LightReelTuff Box1,000 ft
2412FS 0081000GrayReel1,000 ft
2412FS 0051000GreenReel1,000 ft
2412FS 0031000OrangeReel1,000 ft
2412FS 0071000PurpleReel1,000 ft
2412FS 0021000RedReel1,000 ft
2412FS 0091000WhiteReel1,000 ft
2412FS 009A1000WhiteReel-in-Box1,000 ft
2412FS 009Z1000WhiteReelTuff Box1,000 ft
2412FS 0041000YellowReel1,000 ft
