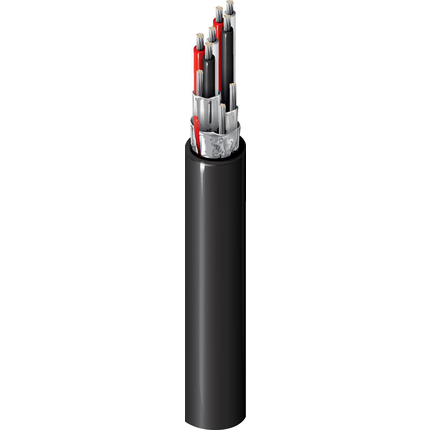

(4)Canadian Instrumentation Cable TC-CIC 300V, 1 Triad 18AWG (7x26) Tinned Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 105C Dry 75C Wet SUN RES -25C
| Element | AWG | Stranding | Material | No. of Pairs | No. of Triads |
|---|---|---|---|---|---|
| Triad(s) | 18 | 7x26 | TC - Tinned Copper | 1 | 1 |
| Conductor Count: | 3 |
| Total Number of Triads: | 1 |
| Material |
|---|
| PVC - Polyvinyl Chloride |
| Color |
|---|
| White |
| Red |
| Drainwire AWG | Drainwire Construction n x D |
|---|---|
| 22 | 7x30 |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Polyester | Beldfoil® | 100% | TC - Tinned Copper | 20 | 7x28 |
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% |
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.303 in | 0.047 in | Yes |
| Max. Outer Shield DCR | Nominal Conductor DCR |
|---|---|
| 5.07 Ohm/1000ft | 6.8 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 45 pF/ft | 95 pF/ft |
| Nominal Inductance |
|---|
| 0.19 µH/ft |
| Non-UL Description | Non-UL Voltage Rating |
|---|---|
| CSA CIC | 300 V |
| Installation Temperature Range: | -25°C To +105 |
| Non-UL Temp Rating: | 105°C |
| Operating Temperature Range: | -40°C To +105°C |
| Bulk Cable Weight: | 121 lbs/1000ft |
| Maximum Recommended Pulling Tension: | 23 lbs |
| Minimum Minor Axis Bend Radius: | 3 in |
| CEC/C(UL) Compliance: | CIC |
| CSA AWM Compliance: | C22.2#239, Type CIC, C22.2#0.3, Clause 4.31, Low Acid Test |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| CSA/C(UL) Flammability: | FT4 |
| Plenum (Y/N): | No |
| Update and Revision: | Revision Number: 0.407 Revision Date: 06-10-2026 |
