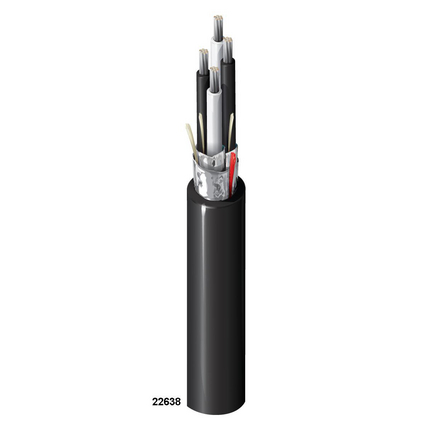

(4)Canadian Instrumentation Cable TC-CIC 300V, 8 Pair 18AWG (7x26) Tinned Copper, PVC Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, 105C Dry 75C Wet SUN RES -25C
| Element | AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|---|
| Pair(s) | 18 | 7x26 | TC - Tinned Copper | 8 |
| Conductor Count: | 16 |
| Material |
|---|
| PVC - Polyvinyl Chloride |
| Color |
|---|
| Black & White numbered |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | 22 | 7x30 |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 20 | 7x28 |
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord | Separator Material |
|---|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.73 in | 0.06 in | Yes | Polyester Tape |
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|
| 10.3 Ohm/1000ft | 6.7 Ohm/1000ft | 4.8 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 42 pF/ft | 95 pF/ft |
| Nominal Inductance |
|---|
| 0.19 µH/ft |
| Max. Recommended Current [A] |
|---|
| 3.5 Amps per Conductor at 25ºC |
| Non-UL Description | Non-UL Voltage Rating |
|---|---|
| CEC CIC | 300 V |
| Installation Temperature Range: | -25°C To +105 |
| Non-UL Temp Rating: | 105°C |
| Operating Temperature Range: | -40°C To +105°C |
| Bulk Cable Weight: | 570 lbs/1000ft |
| Minimum Minor Axis Bend Radius: | 7.3 in |
| CEC/C(UL) Compliance: | CIC |
| CSA AWM Compliance: | C22.2#239, Type CIC, C22.2#0.3, Clause 4.31, Low Acid Test |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| CSA/C(UL) Flammability: | FT4 |
| Plenum (Y/N): | No |
| Update and Revision: | Revision Number: 0.416 Revision Date: 06-10-2026 |
