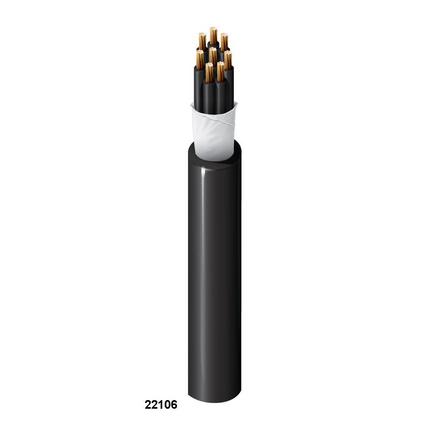

(4)CSA Tray TC-CIC 600V, 16 Conductor 10AWG (7x18) Bare Copper, XLPE Insulation, Black PVC Outer Jacket, 90C Dry/Wet CSA HL SUN RES DIR BUR
| Suitable Applications: | CEC Power and Control Applications |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 16 | 10 AWG | 7x18 | BC - Bare Copper |
| Ground | 12 AWG | 7x18 | BC - Bare Copper |
| Element | Material | Color Code |
|---|---|---|
| Conductor(s) | XLP, XLPO, XLPE (Thermoset) | Black and Numbered |
| Ground | XLP, XLPO, XLPE (Thermoset) | Green |
| Material | Ripcord |
|---|---|
| PVC - Polyvinyl Chloride | Yes |
| Element |
|---|
| Conductor(s) |
| Ground Wire |
| Voltage Rating |
|---|
| 600 V (CSA TC) |
| Operating | Installation |
|---|---|
| -40°C To +90°C | -25°C To +90 |
| Environmental Suitability: | Indoor/Outdoor |
| Flammability / Reaction to Fire: | FT4 |
| AWM Compliance: | C22.2#230 Type TC, C22.2#239 Type CIC |
| CEC / C(UL) Compliance: | TC, CIC |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.8 Revision Date: 03-05-2026 |
