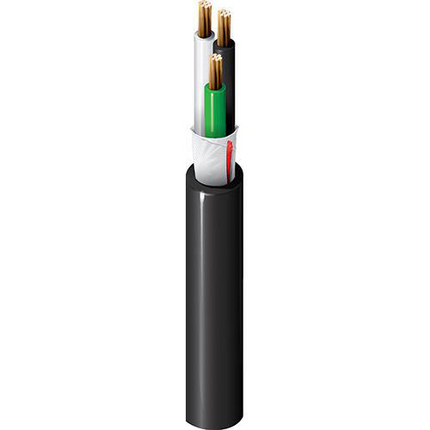

(4)CSA Tray TC- RW90 1000V, 3+G Conductor 2 AWG (7x10) Bare Copper, XLPE Insulation, Black PVC Outer Jacket, 90C Dry/Wet CSA HL SUN RES DIR BUR
| Suitable Applications: | CEC Power and Control Applications |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 2 AWG | 7x10 | BC - Bare Copper |
| Ground Wire | 1 | 6 AWG | 7x14 | BC - Bare Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLP, XLPO, XLPE (Thermoset) | 0.060 in (1.5 mm) | 0.405 in (10.3 mm) | Black, Red, Blue |
| Ground Wire | XLP, XLPO, XLPE (Thermoset) | Green |
| Material |
|---|
| No Shield |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.0950 in (2.41 mm) | 1.0430 in | Yes |
| Overall Cable Diameter (Nominal): | 1.0430 in |
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 0.687 Ohm/1000ft | 130 Amps per Conductor at 30ºC |
| Ground Wire | 0.42 Ohm/1000ft (1.4 Ohm/km) |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 1000 V | 1000 V (CSA TC) |
| UL Temperature | Operating | Installation |
|---|---|---|
| 90°C Dry, 90°C Wet | Wet/Dry: -25°C to 90°C | -25°C To +90 |
| Stationary Min. | Installation Min. |
|---|---|
| 4.172 in (106.0 mm) | 5.215 in |
| Max. Pull Tension: | 2721.7 lbs (1234.5 kg) |
| Bulk Cable Weight: | 1052 lbs/1000ft |
| Environmental Suitability: | Indoor/Outdoor |
| Flammability / Reaction to Fire: | FT4 |
| AWM Compliance: | C22.2 #230 Type TC |
| CEC / C(UL) Compliance: | 1000V Type RW90 TC, CSA TC |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.48 Revision Date: 02-18-2026 |
