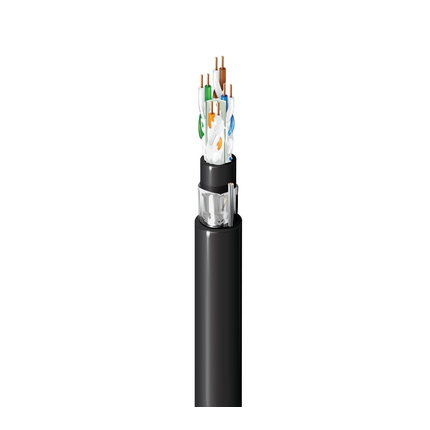

(10)CAT6A (500 MHz), 4 Pair, F/UTP-Foil Shielded, Indoor/Outdoor OSP/CM-LS, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented X-Spline, Gel-Filled, Haloarrest® LSZH Inner Jacket, Overall Beldfoil® Shield with Drain Wire, Ripcord, UV-Resistant Flame Retardant Haloarrest® LSZH Outer Jacket
| Suitable Applications: | OSP-Outdoor, 10 Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, PoE, PoE+ |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Material |
|---|
| Polyolefin |
| Bonded-Pair: | N/A |
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| PE - Polyethylene | Haloarrest® | 0.270 in | No |
| Water Penetration: | GR 421‐CORE para. 4.3.5.1, ANSI/ICEA S‐107‐704 para. 8.2.1, ANSI/ICEA S-99-689 |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Alum / Poly | Beldfoil® | 100.0 % | TC - Tinned Copper | 26 |
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen flame retardant | Haloarrest® | 0.360 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance | Max DCR Unbalanced Between Pairs [%] |
|---|---|---|
| 82 Ohm/km | 3.0 % | 5.0 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 45 pF/100m | 17 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 64.0 % |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. PSANEXT | Min. PSAACRF | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.1 dB/100m | 72.3 dB | 70.2 dB | 67.8 dB | 64.8 dB | 20.0 dB | 105 +/- 10 | 115 +/- 15 | 67.0 dB | 67.0 dB | 40.0 dB | 35.0 dB |
| 4 MHz | 3.8 dB/100m | 63.3 dB | 59.5 dB | 55.8 dB | 52.8 dB | 23.0 dB | 105 +/- 10 | 100 +/- 7 | 67.0 dB | 66.2 dB | 40.0 dB | 23.0 dB |
| 8 MHz | 5.3 dB/100m | 58.8 dB | 53.4 dB | 49.7 dB | 46.7 dB | 24.5 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 60.1 dB | 40.0 dB | 16.9 dB |
| 10 MHz | 5.9 dB/100m | 57.3 dB | 51.4 dB | 47.8 dB | 44.8 dB | 25.0 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 58.2 dB | 40.0 dB | 15.0 dB |
| 16 MHz | 7.5 dB/100m | 54.2 dB | 46.8 dB | 43.7 dB | 40.7 dB | 25.0 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 54.1 dB | 38.0 dB | 10.9 dB |
| 20 MHz | 8.4 dB/100m | 52.8 dB | 44.4 dB | 41.8 dB | 38.8 dB | 25.0 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 52.2 dB | 37.0 dB | 9.0 dB |
| 25 MHz | 9.4 dB/100m | 51.3 dB | 42.0 dB | 39.8 dB | 36.8 dB | 24.3 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 50.2 dB | 36.0 dB | 7.0 dB |
| 31.25 MHz | 10.5 dB/100m | 49.9 dB | 39.4 dB | 37.9 dB | 34.9 dB | 23.6 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 48.3 dB | 35.1 dB | 5.1 dB |
| 62.5 MHz | 15.0 dB/100m | 45.4 dB | 30.4 dB | 31.9 dB | 28.9 dB | 21.5 dB | 100 +/- 22 | 100 +/- 7 | 65.6 dB | 42.3 dB | 32.0 dB | |
| 100 MHz | 19.1 dB/100m | 42.3 dB | 23.2 dB | 27.8 dB | 24.8 dB | 20.1 dB | 100 +/- 22 | 100 +/- 7 | 62.5 dB | 38.2 dB | 30.0 dB | |
| 200 MHz | 27.6 dB/100m | 37.8 dB | 10.2 dB | 21.8 dB | 18.8 dB | 18.0 dB | 100 +/- 22 | 100 +/- 7 | 58.0 dB | 32.2 dB | 27.0 dB | |
| 250 MHz | 31.1 dB/100m | 36.3 dB | 5.3 dB | 19.8 dB | 16.8 dB | 17.3 dB | 100 +/- 32 | 100 +/- 7 | 56.5 dB | 30.2 dB | 26.0 dB | |
| 300 MHz | 34.3 dB/100m | 35.1 dB | 0.9 dB | 18.3 dB | 15.3 dB | 16.8 dB | 100 +/- 32 | 100 +/- 7 | 55.3 dB | 28.7 dB | 25.2 dB | |
| 350 MHz | 37.2 dB/100m | 34.1 dB | 16.9 dB | 13.9 dB | 16.3 dB | 100 +/- 32 | 100 +/- 7 | 54.3 dB | 27.3 dB | 24.6 dB | ||
| 400 MHz | 40.1 dB/100m | 33.3 dB | 15.8 dB | 12.8 dB | 15.9 dB | 100 +/- 32 | 100 +/- 7 | 53.5 dB | 26.2 dB | 24.0 dB | ||
| 450 MHz | 42.7 dB/100m | 32.5 dB | 14.7 dB | 11.7 dB | 15.5 dB | 100 +/- 32 | 100 +/- 7 | 52.7 dB | 25.1 dB | 23.5 dB | ||
| 500 MHz | 45.3 dB/100m | 31.8 dB | 13.8 dB | 10.8 dB | 15.2 dB | 100 +/- 32 | 100 +/- 7 | 52.0 dB | 24.2 dB | 23.0 dB |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Installation Temp Range: | -20°C To +75°C |
| UL Temp Rating: | 75°C |
| Storage Temp Range: | -40°C To +75°C |
| Operating Temp Range: | -40°C To +75°C |
| Cold Bend Test: | -20°C Compliance per UL 1581 |
| Bulk Cable Weight: | 66 lbs/1000ft |
| Max Recommended Pulling Tension: | 25 lbs |
| Min Bend Radius During Installation: | 3.75 in |
| Min Bend Radius/Minor Axis: | 3.0 in |
| NEC/(UL) Specification: | CM-LS |
| CEC/C(UL) Specification: | CM-LS |
| ISO/IEC Compliance: | 11801 ed 2.2 (2011) Class EA |
| Data Category: | Category 6A |
| ANSI Compliance: | S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A |
| Telecommunications Standards: | ANSI/TIA-568-C.2 Category 6A |
| IEEE Specification: | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Other Specification: | Outdoor Use ANSI/ICEA S‐56‐434, Broadband Outdoor Use ANSI/ICEA S‐99‐689, Indoor/Outdoor Use ANSI/ICEA S‐100‐685, Verified Channel/Category 6A |
| Environmental Space: | Indoor/Outdoor |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2002/96/EC (WEEE): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU: | Yes |
| EU Directive Compliance: | Yes |
| EU CE Mark: | Yes |
| EU REACH SVHC Compliance (yyyy-mm-dd): | 2017-07-10 |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2011-03-07 |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Aerial: | Yes - When supported by messenger wire |
| Suitability - Burial: | Yes - Engineered burial only |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | Yes |
| Suitability - Non-Halogenated: | Yes |
| Suitability - Oil Resistance: | No |
| Suitability - Outdoor: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| UL Flammability: | UL 1685 (UL Loading-Limited Smoke) |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | UPC |
|---|---|---|
| 2141A 0101000 | Black | 612825400998 |
| Patent: | http://www.belden.com/p |
| Notes: | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial. |
| Update and Revision: | Revision Number: 0.155 Revision Date: 05-22-2020 |
