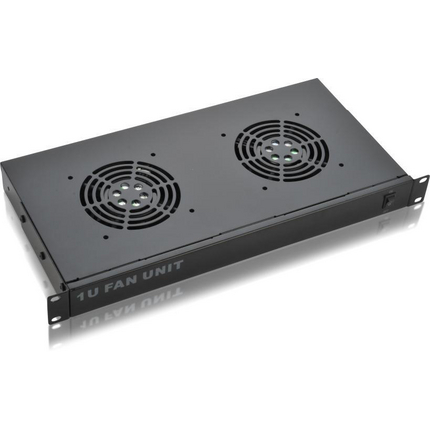

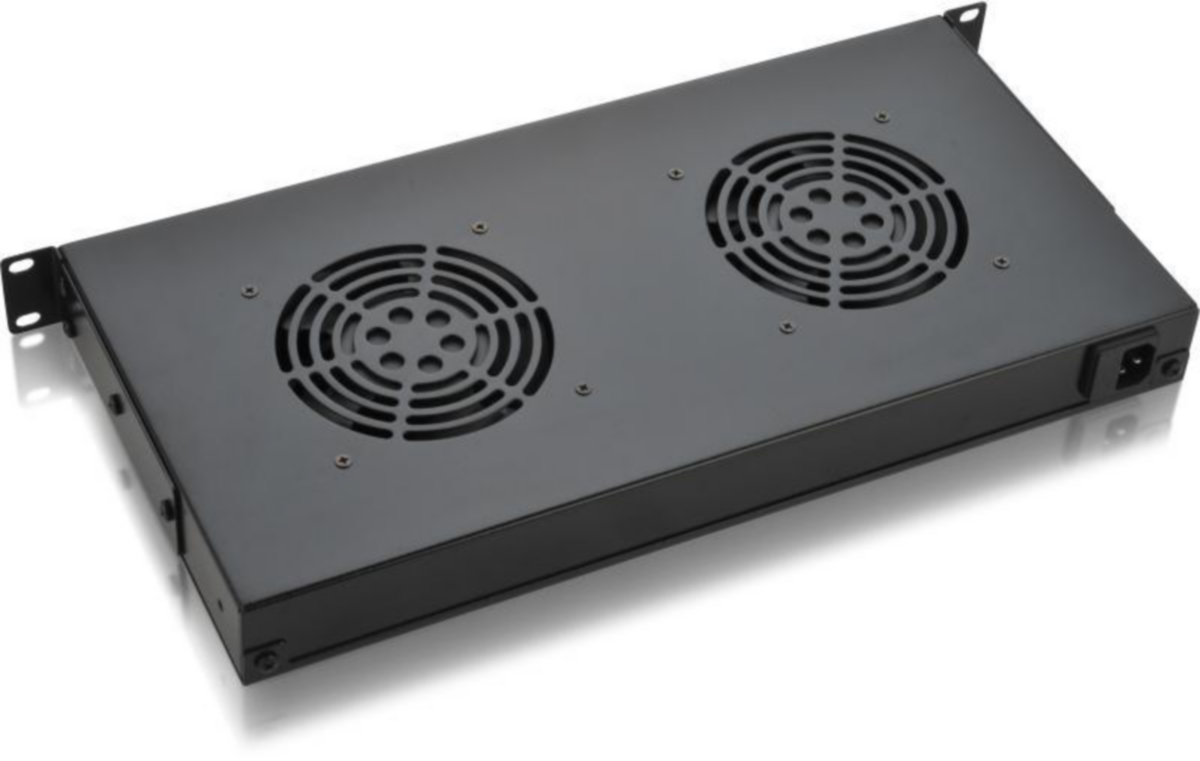

(4)Fan unit especially made to fit Belden A-series, free standing cabinets. The unit can be installed horizontally inside the enclosure, fixed to the verticals. Units available with 2, 3 or 4 fans and several plug types.
| Suitable Applications: | Ventilating hot air from a cabinets lower section to the upper section. |
| Environmental Space: | Indoor |
| Rack Units: | 1U |
| On-Off Switch: | Yes |
| Cord Length: | 1.9 m |
| Material: | SPCC cold rolled steel |
| EU CE Mark: | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| Packaging: | Individually packed in a box. |
| Item # | Number of Fans | Plug Type | Color |
|---|---|---|---|
| ADAF2B21 | 2 | BS 1363P | Gray |
| ADAF2B22 | 2 | BS 1363P | Black |
| ADAF2B31 | 3 | BS 1363P | Gray |
| ADAF2B32 | 3 | BS 1363P | Black |
| ADAF2B41 | 4 | BS 1363P | Gray |
| ADAF2B42 | 4 | BS 1363P | Black |
| ADAF2G21 | 2 | 16A Schuko | Gray |
| ADAF2G22 | 2 | 16A Schuko | Black |
| ADAF2G31 | 3 | 16A Schuko | Gray |
| ADAF2G32 | 3 | 16A Schuko | Black |
| ADAF2G41 | 4 | 16A Schuko | Gray |
| ADAF2G42 | 4 | 16A Schuko | Black |
| ADAF2N21 | 2 | 5-15P | Gray |
| ADAF2N22 | 2 | 5-15P | Black |
| ADAF2N31 | 3 | 5-15P | Gray |
| ADAF2N32 | 3 | 5-15P | Black |
| ADAF2N41 | 4 | 5-15P | Gray |
| ADAF2N42 | 4 | 5-15P | Black |
| Update and Revision: | Revision Number: 0.27 Revision Date: 04-08-2022 |
