19504 - Portable Cordage, (3) 16 AWG (65x34) BC, PVC/Belflex, Type STOW

19504-Portable Cordage, (3) 16

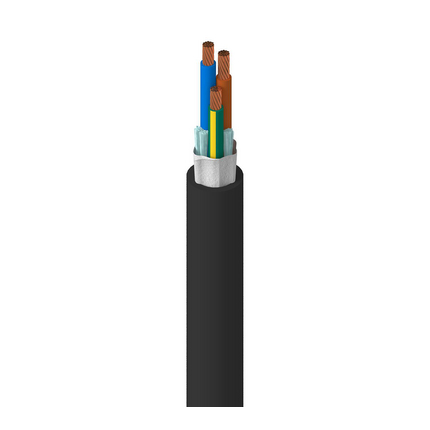

Three 16 AWG stranded (65x34) bare copper conductors, PVC insulation, Belflex® jacket.

Data Sheet
Share

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1665x34BC - Bare Copper3
Conductor Count: 3
Conductor Size: 16 AWG
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.033 in
Color Chart
Color
Blue
Brown
Green/Yellow
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessSeparator Material
PVC Blend - Polyvinyl Chloride BlendBelflex®0.405 in0.07 inPaper Tape

Construction and Dimensions

Type of Cordage: STOW
Stranding
Lay Length
Black mm
Cabling
Filler
Polypropylene
Print Legend: Surface Impression Printed

Electrical Characteristics

Shielding: Unshielded
Current
Max. Recommended Current [A]
13 Amps per conductor @ 25°C; 18 Amps per conductor @ 25°C
10 Amps per conductor @ 25°C (over 50 ft.)
Voltage
Dielectric Withstand VoltageUL Voltage Rating
2000 V AC Applied for 1 Min.600 V RMS
Electrical Characteristics Notes: Dielectric Withstand Voltage: 3000 V AC Applied for 1 Min.

Temperature Range

UL Temp Rating: 60°C
Operating Temp Range: -35°C To +105

Mechanical Characteristics

Oil Resistance: Yes
Bulk Cable Weight: 84 lbs/1000ft

Standards

NEC/(UL) Specification: STOW
CSA AWM Specification: STOW

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
CSA Flammability: FT1
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
19504 B59250Black, MatteC
Footnote: C - CRATE REEL PUT-UP.
RoHS Documentation
Date: 2004-01-01
Download
Capability Bulletin
Belden Classics
Download
