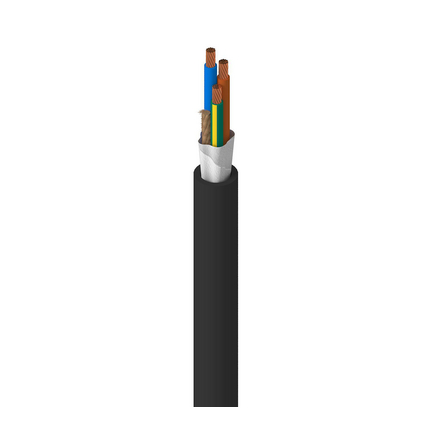

19352 - Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SJT


Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1842x34BC - Bare Copper3
Conductor Count: 3
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.032 in
Color Chart
Color
Light Blue
Brown
Green/Yellow
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.328 in0.046 in

Construction and Dimensions

Type of Cordage: SJT
Cabling
Filler
Paper

Electrical Characteristics

Current
Max. Recommended Current [A]
10 Amps per conductor @ 25°C; 7 Amps per conductor @ 25°C over 50 ft
7 Amps per conductor @ 25°C over 50 ft.
Voltage
Dielectric Withstand VoltageUL Voltage Rating
1500 V AC Applied For 1 Min.300 V RMS
Electrical Characteristics Notes: Dielectric Withstand Voltage: 1500 V AC Applied For 1 Min

Temperature Range

UL Temp Rating: 60°C

Mechanical Characteristics

Bulk Cable Weight: 64 lbs/1000ft

Standards

NEC/(UL) Specification: SJT
CSA AWM Specification: SJT

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLengthFootnote
19352 010250Black612825126959250 ftC
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.293 Revision Date: 08-22-2019
Date: 2004-01-01
