19217 - Portable Cordage, (4) 14 AWG (41x30) BC, EPDM/Rubber, Type SO

19217-Portable Cordage, (4) 14

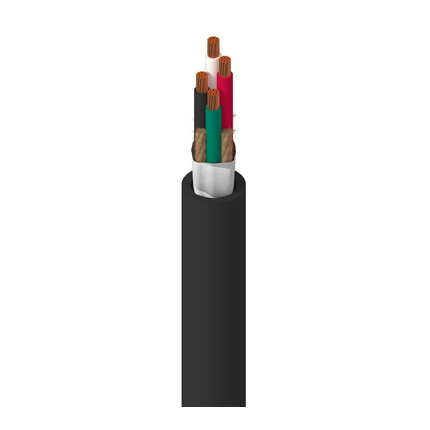

Two 14 AWG stranded (41x30) bare copper conductors, EPDM insulation, rubber jacket.

Data Sheet
Share

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1441x30BC - Bare Copper4
Conductor Count: 4
Conductor Size: 14 AWG
Insulation
MaterialNominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer Rubber0.048 in
Color Chart
Color
Black
White
Green
Red
Outer Shield Material
Material
Unshielded
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
Rubber0.603 in0.087 inPaper Tape

Construction and Dimensions

Type of Cordage: SO
Stranding
Lay Length
Black mm
Cabling
Filler
Jute
Print Legend: 14-4 SO 90°C (UL) E3462----CSA LL7874 14-4 SO 90°C FT2

Electrical Characteristics

Shielding: Unshielded
Current
Max. Recommended Current [A]
15 Amps per conductor @ 25°C; 10 Amps per conductor @ 25°C (over 50 ft.)
10 Amps per conductor @ 25°C (over 50 ft.)
Voltage
Dielectric Withstand VoltageUL Voltage Rating
3000 V AC Applied For 1 Min.600 V RMS
Electrical Characteristics Notes: Dielectric Withstand Voltage: 3000 V AC Applied for 1 Min

Temperature Range

UL Temp Rating: 90°C

Mechanical Characteristics

Oil Resistance: Yes
Bulk Cable Weight: 202 lbs/1000ft
Min Bend Radius/Minor Axis: 6.25 in

Standards

NEC/(UL) Specification: SO
CSA AWM Specification: SO

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT2
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
19217 010200BlackC
19217 01050BlackC
Footnote: C - CRATE REEL PUT-UP.
