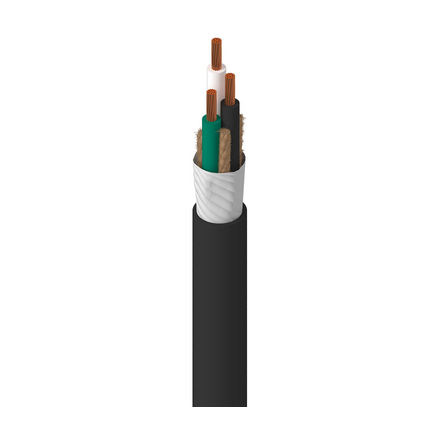

19208 - Portable Cordage, (3) 16 AWG (65x34) BC, EPDM/Rubber, Type SO

19208-Portable Cordage, (3) 16

Three 16 AWG stranded (65x34) bare copper conductors, EPDM insulation, rubber jacket.

Data Sheet
Share

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1665x34BC - Bare Copper3
Total Number of Conductors: 3
Conductor Size: 16 AWG
Insulation
MaterialNominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer Rubber0.033 in
Color Chart
Color
Black
White
Green
Outer Shield Material
Material
Unshielded
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
Rubber0.4 in0.073 inCotton Serve

Construction and Dimensions

Type of Cordage: SO
Stranding
Lay Length
Black mm
Cabling
Filler
Jute
Print Legend: Surface Impression Printed

Electrical Characteristics

Shielding: Unshielded
Current
Max. Recommended Current [A]
13 Amps per conductor @ 25°C; 10 Amps per conductor @ 25°C
10 Amps per conductor @ 25°C (over 50 ft.)
Voltage
Dielectric Withstand VoltageUL Voltage Rating
2000 V AC Applied For 1 Min.600 V RMS
Other Electrical Characteristic 1: Dielectric Withstand Voltage: 3000 V AC Applied For 1 Min

Temperature Range

UL Temp Rating: 90°C

Mechanical Characteristics

Oil Resistance: Yes
Bulk Cable Weight: 90 lbs/1000ft
Min Bend Radius/Minor Axis: 4.25 in

Standards

NEC/(UL) Specification: SO
CSA AWM Specification: SO

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Voltage Rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
19208 010250BlackC F
Footnote: C - CRATE REEL PUT-UP.
Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
