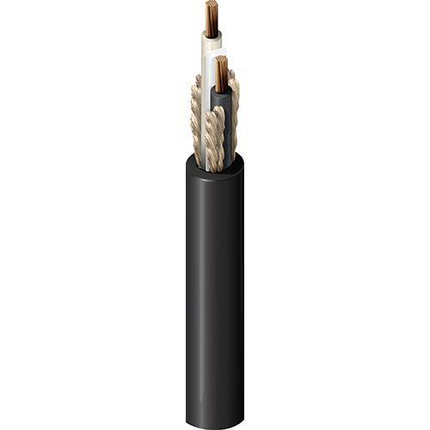

(13)19201 - Portable Cordage, (2) 12 AWG (65x30) BC, EPDM/Rubber, Type SO
Two 12 AWG stranded (65x30) bare copper conductors, EPDM insulation, rubber jacket.
Physical Characteristics (Overall)
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 12 | 65x30 | BC - Bare Copper | 2 |
| Conductor Count: | 2 |
| Conductor Size: | 12 AWG |
| Material | Nominal Wall Thickness |
|---|---|
| EPDM - Ethylene Propylene Diene Monomer Rubber | 0.052 in |
| Color |
|---|
| Black |
| White |
| Material |
|---|
| Unshielded |
| Material | Nominal Diameter | Nominal Wall Thickness | Separator Material |
|---|---|---|---|
| Rubber | 0.61 in | 0.1 in | Paper Tape |
Construction and Dimensions
| Type of Cordage: | SO |
| Filler |
|---|
| Jute |
| Print Legend: | Surface Impression Printed |
Electrical Characteristics
| Shielding: | Unshielded |
| Max. Recommended Current [A] |
|---|
| 25 Amps per conductor @ 25°C; 18 Amps per conductor @ 25°C over 50 ft |
| 18 Amps per conductor @ 25°C over 50 ft. |
| Dielectric Withstand Voltage | UL Voltage Rating |
|---|---|
| 3000 V AC Applied For 1 Min. | 600 V RMS |
| Electrical Characteristics Notes: | Dielectric Withstand Voltage: 3000 V AC Applied For 1 Min |
Temperature Range
| UL Temp Rating: | 90°C |
| Operating Temp Range: | 90°C |
Mechanical Characteristics
| Bulk Cable Weight: | 191 lbs/1000ft |
| Min Bend Radius/Minor Axis: | 6.25 in |
Standards
| NEC/(UL) Specification: | SO |
| CSA AWM Specification: | SO |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2004-01-01 |
| CA Prop 65 (CJ for Wire & Cable): | Yes |
| MII Order #39 (China RoHS): | Yes |
Flammability, LS0H, Toxicity Testing
| CSA Flammability: | FT2 |
| UL voltage rating: | 600 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N): | No |
