19140 - Portable Cordage, (2) 18 AWG (42x34) BC, PVC/PVC, Type SVT

19140-Portable Cordage, (2) 18

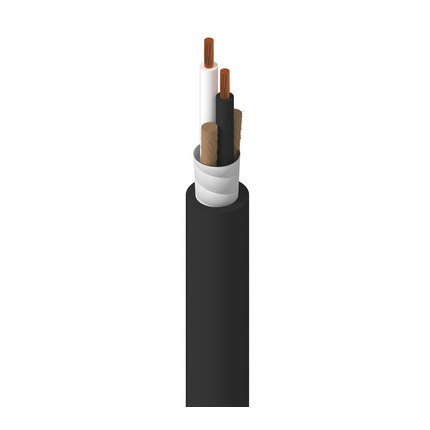

Two 18 AWG stranded (42x34) bare copper conductors, PVC insulation, PVC jacket.

Data Sheet
Share

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1842x34BC - Bare Copper2
Conductor Count: 2
Total Number of Pairs: 1
Conductor Size: 18 AWG
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.018 in
Color Chart
Color
Black
White
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
PVC - Polyvinyl Chloride0.243 in0.036 inPaper Tape

Construction and Dimensions

Type of Cordage: SVT
Stranding
Lay Length
Gray mm
Cabling
Filler
Jute

Electrical Characteristics

Shielding: Unshielded
Current
Max. Recommended Current [A]
10 Amps per conductor @ 25°C; 7 Amps per conductor @ 25°C over 50 ft
7 Amps per conductor @ 25°C over 50 ft.
Voltage
Dielectric Withstand VoltageUL Voltage Rating
1500 V AC Applied For 1 Min.300 V RMS
Electrical Characteristics Notes: Dielectric Withstand Voltage: 1500 V AC Applied For 1 Min

Temperature Range

UL Temp Rating: 60°C

Mechanical Characteristics

Bulk Cable Weight: 32 lbs/1000ft
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Specification: SVT
CSA AWM Specification: SVT

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
19140 010250BlackF
19140 008250GrayF
Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
