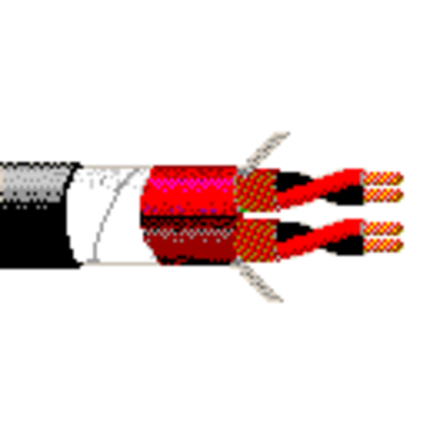

1912A - Audio Snake Cable, #24-12pr, TC, Indiv. Shielded, CM

1912A-Audio Snake Cable, #24-12pr,

Audio Snake Cable, 12-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with double serve "French Braid", drain, numbered/color-coded PVC jackets, flexible PVC jacket

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
2441x40BC - Bare Copper0.0225 in12
Conductor Count: 24
Total Number of Pairs: 12
Conductor Size: 24 AWG
Insulation
MaterialNominal DiameterNominal Wall Thickness
PO - Polyolefin0.04 in0.008 in
Color Chart
NumberColor
1Brown
2Red
3Orange
4Yellow
5Green
6Blue
7Purple
8Gray
9White
10Black
11Tan
12Pink
Inner Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
French BraidBC - Bare Copper95 %TC - Tinned Copper0.025 in2419x26
TC - Tinned Copper
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.119 in0.0135 in
Outer Shield Material
Material
Unshielded
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.602 in0.062 in
0.602 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Conductor DCR Conductor Resistance
7.2 Ohm/1000ft25.5 Ohm/1000ft25.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
26.1 pF/ft47.5 pF/ft
Shielding: S/FTP - Overall Braid / Individual Foil
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
60 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
1.05 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 187 lbs/1000ft
Max Recommended Pulling Tension: 350 lbs
Min Bend Radius/Minor Axis: 6 in

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
1912A B591000Black, MatteC
1912A B59250Black, Matte
1912A B59500Black, Matte
Footnote: C - CRATE REEL PUT-UP.
Date: 2004-01-01
