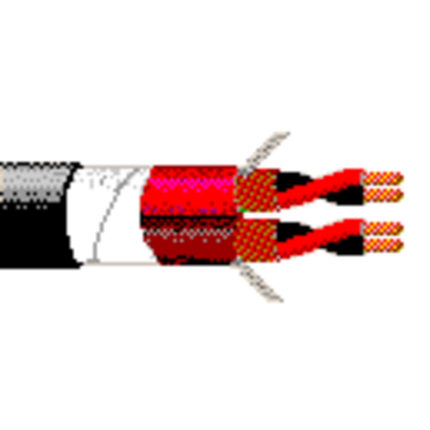

1902A - Audio Snake Cable, #24-2pr, BC, Indiv. Shielded


Audio Snake Cable, 2-24 AWG bare copper pairs, polyolefin insulation, individually shielded with double serve "French Braid", drain, numbered/color-coded PVC jackets, flexible PVC jacket

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
2441x40BC - Bare Copper0.0225 in2
Conductor Count: 4
Total Number of Pairs: 2
Insulation
MaterialNominal DiameterNominal Wall Thickness
PP - Polypropylene0.0395 in0.0085 in
Color Chart
NumberColor
1Brown
2Red
Inner Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
French BraidBare Copper (BC)95%TC - Tinned Copper0.025 in2419x26
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.119 in0.0135 in
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.33 in0.0445 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Conductor DCR Conductor Resistance
7.2 Ohm/1000ft25.5 Ohm/1000ft25.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
26.1 pF/ft47.5 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
60 Ohm
Current
Max. Recommended Current [A]
1.05 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 48 lbs/1000ft
Max. Pull Tension: 58 lbs
Min Bend Radius/Minor Axis: 3.5 in

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
1902A B59250Black, MatteReel250 ft612825126140
1902A B59500Black, MatteReel500 ft612825126157
1902A B591000Black, MatteReel1,000 ft612825126133
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.267 Revision Date: 08-25-2020
Date: 2004-01-01
No accessories are available for this product
