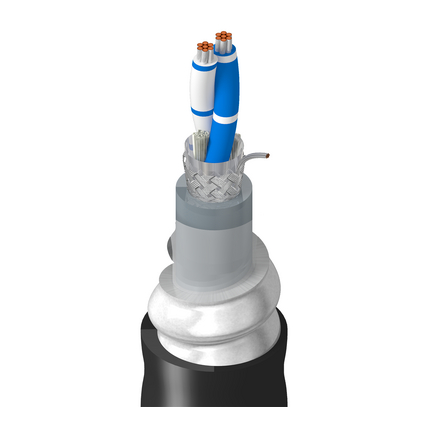

189841 - RS485, 1 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, CCA Armor, PVC Jkt, CM


RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Inner Jacket, Continuous Cast Aluminum Armor, PVC Outer Jacket, CM

Product Overview

Suitable Applications: exposure to rodent, crush, or cut through force, burial, POS, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Pair(s)124 AWG7x32TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Pair(s)PE - Polyethylene0.023 in (0.58 mm)White/Blue Stripe & Blue/White Stripe
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%24 AWG (7x32) TC
BraidTinned Copper (TC)90%
Inner Jacket
MaterialNom. Diameter
PVC - Polyvinyl Chloride0.232 in (5.89 mm)
Armor
Armor Type & Material
CCAA - Continuously Corrugated Aluminum Armor
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PVC - Polyvinyl Chloride0.050 in (1.3 mm)0.515 in (13.1 mm)
Overall Cable Diameter (Nominal): 0.515 in (13.1 mm)

Electrical Characteristics

Electricals
ElementNom. Characteristic Impedence
Pair(s)120 Ohm
High Frequency (Nominal/Typical)
Element
Pair(s)
Voltage
UL Voltage Rating
300 V (CM)

Standards and Compliance

Environmental Suitability: Outdoor, Sunlight Resistance
NEC / UL Compliance: Article 800, CM
CEC / C(UL) Compliance: CM

History

Update and Revision: Revision Number: 0.60 Revision Date: 02-15-2024
