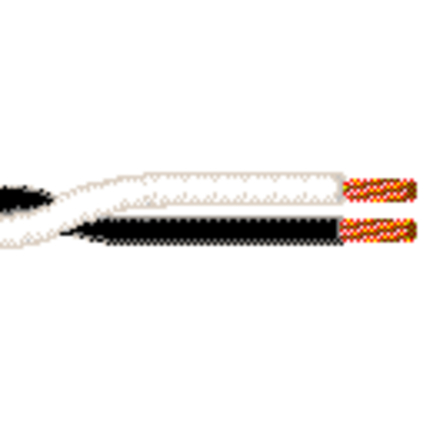

1863A - Speaker Cable, 2 Conductor 18 AWG BC, Unshielded, CMP


Speaker Cable, 2 Conductor 18 AWG stranded high conductivity bare copper conductors with Flamarrest® insulation, cabled in an open twisted construction, Plenum-CL2P.

Product Overview

Suitable Applications: Speaker Cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1819x30BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.022 in
Outer Shield Material
Material
No Shield
Outer Jacket Material
Nominal Diameter
0.178 in

Construction and Dimensions

Cabling
Twists
6.9 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.4 Ohm/1000ft
Inductance
Nominal Inductance
0.2 µH/ft
Current
Max. Recommended Current [A]
4.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
150 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 17 lbs/1000ft
Max Recommended Pulling Tension: 49.4 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC/(UL) Specification: CL2P
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
1863A D261000Black & Natural PairReel1,000 ft612825125174
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.261 Revision Date: 04-28-2020
Date: 2005-04-01
