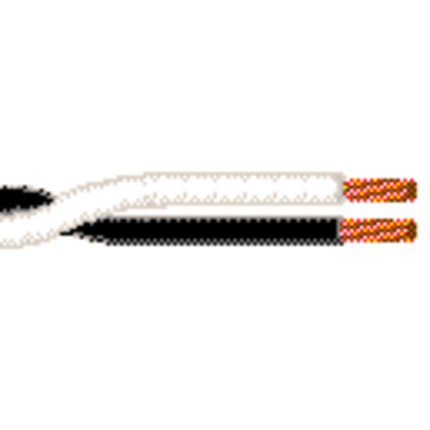

1862A - Speaker Cable, 2 Conductor 16 AWG BC, Unshielded, CMP


Speaker Cable, 2 Conductor 16 AWG stranded (19x29) high conductivity bare copper conductors with Flamarrest® insulation, cabled in an open twisted construction, Plenum-CL3P.

Product Overview

Suitable Applications: Speaker Cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1619x29BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC - Polyvinyl ChlorideFlamarrest®0.022 in
Outer Shield Material
Material
No Shield
Outer Jacket Material
Nominal Diameter
0.202 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
4.2 Ohm/1000ft
Inductance
Nominal Inductance
0.186 µH/ft
Current
Max. Recommended Current [A]
6.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
150 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 24 lbs/1000ft
Max. Pull Tension: 60.8 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC/(UL) Compliance: CL3P

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
1862A D261000Black & Natural PairReel1,000 ft612825125167
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.265 Revision Date: 06-24-2020
Date: 2005-04-01
