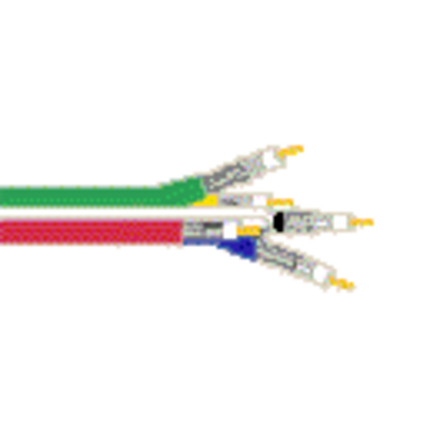

1855S6 - VideoFLEX® Snake, Banana Peel, Mini, #23-6 Coax, CMR

1855S6-VideoFLEX® Snake, Banana Peel

VideoFLEX® Digital Coax Snake Cable, Riser-CMR, 6-Sub-Miniature 23 AWG, solid bare copper conductors, foam HDPE core, Duofoil® +95% tinned copper braid, individual PVC jackets, Banana Peel construction

Product Overview

Environmental Space: Indoor - Riser

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Coax
23SolidBC - Bare Copper0.023 in6
Conductor Count: 6
Conductor Size: 23 AWG
Insulation
MaterialNominal Diameter
Gas-injected FHDPE - Foam High Density Polyethylene0.102 in
Color Chart
NumberColor
1Red
2Green
3Blue
4White
5Yellow
6Brown
Inner Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Aluminum Foil-Polyester Tape-Aluminum FoilDuofoil®100 %
Braid2TC - Tinned Copper95 %
Inner Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.159 in
Outer Jacket Material
MaterialNominal Diameter
Unjacketed0.477 in

Construction and Dimensions

Cabling
Filler
Bonded Spline

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Inner Shield DCROuter Conductor DCR
20.1 Ohm/1000ft20.1 Ohm/1000ft7.6 Ohm/1000ft7.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.5 pF/ft
Shielding: Multiple or Specialty
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz]Minimum Return (RL)
5-625 MHz20 dB
625-675 MHz15 dB
675-850 MHz20 dB
850-4500 MHz15 dB
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.4 dB/100ft
3.6 MHz0.8 dB/100ft
10 MHz1.2 dB/100ft
71.5 MHz3.1 dB/100ft
135 MHz3.8 dB/100ft
270 MHz5.4 dB/100ft
360 MHz6.2 dB/100ft
540 MHz7.7 dB/100ft
720 MHz9.1 dB/100ft
750 MHz9.5 dB/100ft
1000 MHz10.5 dB/100ft
1500 MHz13 dB/100ft
2500 MHz16.9 dB/100ft
3000 MHz18.5 dB/100ft
Delay
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.24 ns/ft83 %
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
UL Temp Rating: 60°C
Operating Temp Range: -35°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 114 lbs/1000ft
Max Recommended Pulling Tension: 216 lbs
Min Bend Radius/Minor Axis: 6 in

Standards

NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
RG Type: Mini 59/U Type

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
1855S6 0001000NoneC
1855S6 000500NoneC
Footnote: C - CRATE REEL PUT-UP.
Date: 2004-01-01
