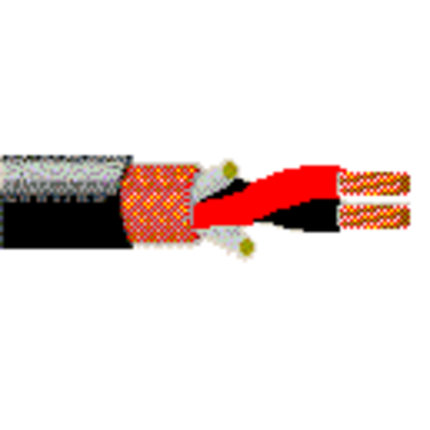

1813A - Audio Cable, #24-2c, BC, O/A Braid, CM

1813A-Audio Cable, #24-2c, BC, O&#x

Audio Cable, CM-Rated, 1-24 AWG stranded high-conductivity bare copper pair with PVC insulation, +90% bare copper spiral shield, PVC jacket

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
2427x38High Conductivity BC - Bare Copper0.0246 in1
Conductor Count: 2
Total Number of Pairs: 1
Conductor Size: 24 AWG
Insulation
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.059 in0.017 in
Color Chart
NumberColor
1Blue & Red
Outer Shield Material
TypeMaterialCoverage [%]
Spiral ServeBC - Bare Copper90 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.236 in0.055 in
0.236 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCR
22.8 Ohm/1000ft22.8 Ohm/1000ft11.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
33 pF/ft61 pF/ft
Shielding: Multiple or Specialty
Inductance
Nominal Inductance
0.219 µH/ft
Voltage
Non-UL Voltage Rating
100 V RMS

Temperature Range

Operating Temp Range: -30°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 30 lbs/1000ft
Max Recommended Pulling Tension: 10 lbs
Min Bend Radius/Minor Axis: 2.5 in

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
1813A B591000Black, MatteC
1813A B59328Black, MatteC
Footnote: C - CRATE REEL PUT-UP.
Date: 2005-04-01
microphone-cable-product-bulletin.pdf
