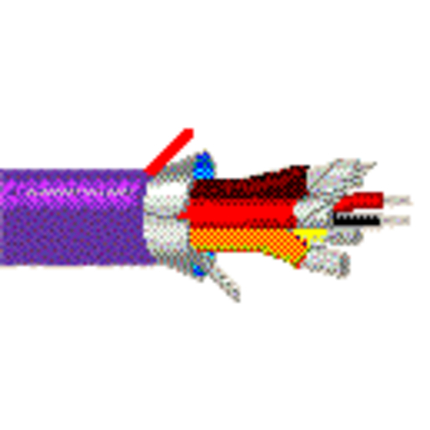

(4)Digital Audio Snake Cable, CMG-Rated, 12-24 AWG tinned copper pairs, Datalene® insulation, individually shielded with Beldfoil, numbered/color-coded PVC jackets, flexible PVC jacket
| Suitable Applications: | Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio |
| Size | Stranding | Material |
|---|---|---|
| 24 | 7x32 | TC - Tinned Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|
| PE - Polyethylene (Foam) | 0.022 in (0.56 mm) | 0.068 in (1.7 mm) | Brown and Numbered 1, Red and Numbered 2, Orange and Numbered 3, Yellow and Numbered 4, Green and Numbered 5, Blue and Numbered 6, Purple and Numbered 7, Gray and Numbered 8, White and Numbered 9, Black and Numbered 10, Tan and Numbered 11, Pink and Numbered 12 | HDPE |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Inner Shield Table Notes: | Indiv. Foil tapes bonded to inner jacket |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.014 in (0.36 mm) | 0.167 in (4.24 mm) |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.069 in (1.8 mm) | 0.829 in | Yes |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| 23.7 Ohm/1000ft (77.8 Ohm/km) | 12 pF/ft (39 pF/m) | 26 pF/ft (85 pF/m) | 110 Ohm | 0.18 µH/ft (0.59 µH/m) | 76% |
| Frequency | Nom. Insertion Loss (Attenuation) [dB/100ft] |
|---|---|
| 0.384 MHz | 0.29 |
| 0.706 MHz | 0.71 |
| 0.768 MHz | 0.77 |
| 1.024 MHz | 0.94 |
| 1.411 MHz | 1.1 |
| 1.536 MHz | 1.1 |
| 2.048 MHz | 1.3 |
| 2.822 MHz | 1.4 |
| 3.072 MHz | 1.4 |
| 4.096 MHz | 1.5 |
| 5.645 MHz | 1.7 |
| 6.144 MHz | 1.8 |
| 8.192 MHz | 2 |
| 11.29 MHz | 2.2 |
| 12.288 MHz | 2.3 |
| 24.576 MHz | 3.1 |
| UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temperature | Operating |
|---|---|
| 60°C | -30°C To +60°C |
| Max. Pull Tension: | 200 lbs (91 kg) |
| Bulk Cable Weight: | 288 lbs/1000ft (429 kg/km) |
| Environmental Suitability: | Indoor (Not Riser or Plenum), Indoor |
| Flammability / Reaction to Fire: | UL1685 FT4 Loading, FT4, 1202 |
| NEC / UL Compliance: | CMG |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | AES/EBU |
| Notes: | Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment. Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight. |
| Update and Revision: | Revision Number: 0.439 Revision Date: 09-07-2025 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1806F Z4B2500 | Violet | Reel | 2,500 ft | 612825438199 | |
| 1806F Z4B500 | Violet Z4B | Reel | 500 ft | 612825123200 | C |
| 1806F Z4B1000 | Violet Z4B | Reel | 1,000 ft | 612825123194 | C |
| Footnote: | C - CRATE REEL PUT-UP. |
