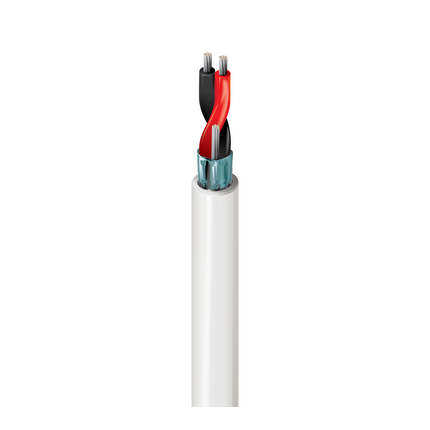

(4)Digital Audio Cable, 1 Pair, 24 AWG (7 x 32) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, Flamarrest® Jacket, CMP
| Suitable Applications: | Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 24 AWG | 7x32 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | FEP - Fluorinated Ethylene Propylene (Foam) | 0.021 in (0.53 mm) | 0.066 in (1.7 mm) | Red & Black |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.165 in (4.19 mm) |
| Overall Cable Diameter (Nominal): | 0.165 in (4.19 mm) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 28.8 Ohm/1000ft | 12 pF/ft (39 pF/m) | 26 pF/ft (85 pF/m) | 110 Ohm | 78% | 3.8 Amps per conductor @ 30°C |
| UL Voltage Rating |
|---|
| 300 V (CMP) |
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.7 in (43 mm) | 1.7 in (43 mm) |
| Max. Pull Tension: | 16.5 lbs (7.48 kg) |
| Bulk Cable Weight: | 12 lbs/1000ft |
| Environmental Suitability: | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire: | NFPA 262 (UL 910), FT6, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CMP |
| CEC / C(UL) Compliance: | CMP |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | AES/EBU |
| Non-Plenum Number: | 1800B |
| Update and Revision: | Revision Number: 0.511 Revision Date: 02-03-2025 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1801B 0081000 | Gray | Reel | 1,000 ft | 612825416661 | |
| 1801B 877500 | Natural | Reel | 500 ft | 612825122968 | C |
| 1801B 8771000 | Natural | Reel | 1,000 ft | 612825122951 | C |
| 1801B 877U1000 | Natural | UnReel | 1,000 ft | 612825122944 | |
| 1801B 8775000 | Natural | Reel | 5,000 ft | 612825430056 | |
| 1801B Z4B500 | Violet Z4B | Reel | 500 ft | 612825122937 | |
| 1801B Z4B1000 | Violet Z4B | Reel | 1,000 ft | 612825122920 | C |
| 1801B Z4BU1000 | Violet Z4B | UnReel | 1,000 ft | 612825122913 |
