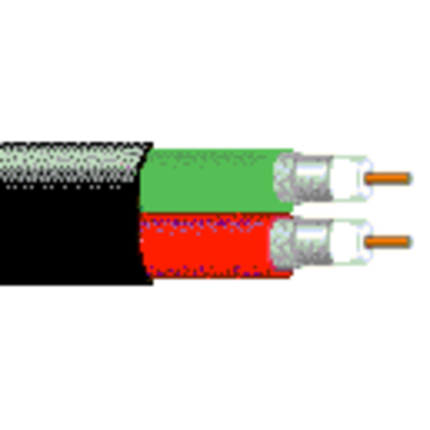

(4)Low Loss Serial Digital Coax, Riser-CMR, 2-RG6 18 AWG solid bare copper conductors, foam HDPE core, Duofoil+95% tinned copper braid, inner PVC jackets, PVC jacket
| Suitable Applications: | Video Mult. |
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 18 | Solid | BC - Bare Copper | 0.04 in | 2 |
| Conductor Count: | 2 |
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.18 in |
| Table Notes: | Gas Injected |
| Number | Color |
|---|---|
| 1 | Red |
| 2 | Green |
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Tinned Copper (TC) | 95% |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.275 in |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.618 in |
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Inner Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 6.4 Ohm/1000ft | 6.4 Ohm/1000ft | 2.8 Ohm/1000ft | 2.8 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
|---|
| 16.2 pF/ft |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Frequency [MHz] | Minimum Return (RL) |
|---|---|
| 5-1600 MHz | 23 dB |
| 1600-4500 MHz | 21 dB |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.24 dB/100ft |
| 3.58 MHz | 0.44 dB/100ft |
| 5 MHz | 0.52 dB/100ft |
| 7 MHz | 0.61 dB/100ft |
| 10 MHz | 0.71 dB/100ft |
| 67.5 MHz | 1.65 dB/100ft |
| 71.5 MHz | 1.69 dB/100ft |
| 88.5 MHz | 1.86 dB/100ft |
| 100 MHz | 1.95 dB/100ft |
| 135 MHz | 2.24 dB/100ft |
| 143 MHz | 2.3 dB/100ft |
| 180 MHz | 2.57 dB/100ft |
| 270 MHz | 3.17 dB/100ft |
| 360 MHz | 3.69 dB/100ft |
| 540 MHz | 4.6 dB/100ft |
| 720 MHz | 5.38 dB/100ft |
| 750 MHz | 5.5 dB/100ft |
| 1000 MHz | 6.42 dB/100ft |
| 1500 MHz | 7.99 dB/100ft |
| 2000 MHz | 9.37 dB/100ft |
| 2250 MHz | 10.01 dB/100ft |
| 3000 MHz | 11.78 dB/100ft |
| 4500 MHz | 15.7 dB/100ft |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.24 ns/ft | 82% |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Non-UL Temp Rating: | 75°C |
| UL Temp Rating: | 60°C |
| Operating Temperature Range: | -40°C To +75°C |
| Bulk Cable Weight: | 124 lbs/1000ft |
| Max. Pull Tension: | 177 lbs |
| Min. Bend Radius/Minor Axis: | 3.5 in |
| NEC/(UL) Compliance: | CMR |
| CEC/C(UL) Compliance: | CMG |
| CPR Euroclass: | Eca |
| RG Type: | 6 |
| Series Type: | 6 |
| Environmental Space: | Indoor/Outdoor |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | No |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| UL Flammability: | UL1666 Vertical Shaft |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1694D 010500 | Black | Reel | 500 ft | 612825357452 |
| 1694D 0101000 | Black | Reel | 1,000 ft | 612825357445 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Update and Revision: | Revision Number: 0.402 Revision Date: 02-03-2025 |
