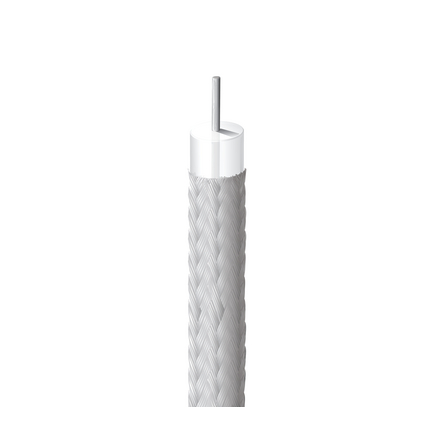

(4)50 Ohm, RG-402/U type commercial non-QPL product, 19 AWG solid .036" silver-plated copper conductor, PTFE insulation, copper-tin composite shield (100% coverage), unjacketed.
| Suitable Applications: | Microwave |
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 19 | Solid | SC - Silvered Copper | 0.036 in | 1 |
| Conductor Count: | 1 |
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| PTFE - Polytetrafluoroethylene | Teflon® | 0.116 in |
| Type | Layer | Material | Coverage [%] |
|---|---|---|---|
| Tape | 1 | Bare Copper (BC) | 100% |
| Braid | 2 | Tinned Copper (TC + Tin Filled) | 100% |
| Material |
|---|
| No Jacket |
| Nominal Conductor DCR | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|
| 7.9 Ohm/1000ft | 4.5 Ohm/1000ft | 4.5 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
|---|
| 29.5 pF/ft |
| Nominal Inductance |
|---|
| 0.07 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 500 MHz | 8 dB/100ft |
| 1000 MHz | 12 dB/100ft |
| 2000 MHz | 18.1 dB/100ft |
| 3000 MHz | 22.9 dB/100ft |
| 5000 MHz | 31 dB/100ft |
| 7000 MHz | 37.8 dB/100ft |
| 10000 MHz | 46.6 dB/100ft |
| 15000 MHz | 59.1 dB/100ft |
| 18000 MHz | 65.8 dB/100ft |
| 20000 MHz | 70 dB/100ft |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.46 ns/ft | 70% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 500 MHz | 9.5 dB/100ft |
| 1000 MHz | 14.5 dB/100ft |
| 3000 MHz | 26.5 dB/100ft |
| 5000 MHz | 36 dB/100ft |
| 10000 MHz | 54 dB/100ft |
| 20000 MHz | 84 dB/100ft |
| Frequency [MHz] | Max. Power Rating [W] | Nominal Power Rating [W] |
|---|---|---|
| 500 MHz | 600 W | 600 W |
| 1,000 MHz | 401 W | 401 W |
| 2,000 MHz | 268 W | 268 W |
| 3,000 MHz | 211 W | 211 W |
| 5,000 MHz | 157 W | 157 W |
| 7,000 MHz | 129 W | 129 W |
| 10,000 MHz | 105 W | 105 W |
| 15,000 MHz | 83 W | 83 W |
| 18,000 MHz | 74 W | 74 W |
| 20,000 MHz | 70 W | 70 W |
| Non-UL Voltage Rating |
|---|
| 1900 V RMS |
| Element | Frequency [MHz] | Max. VSWR |
|---|---|---|
| Ramp Function, End Points | 500 MHz | 1.1:1 |
| 1000 MHz | 1.11:1 | |
| 3000 MHz | 1.13:1 | |
| 7000 MHz | 1.17:1 | |
| 15000 MHz | 1.25:1 | |
| 20000 MHz | 1.3:1 |
| Electrical Characteristics Notes: | VSWR limit is a continuous sloping line from 500 MHz to 20 GHz |
| Non-UL Temp Rating: | 200°C |
| Operating Temperature Range: | -70°C To +200°C |
| Bulk Cable Weight: | 25 lbs/1000ft |
| Max. Pull Tension: | 70 lbs |
| Min. Bend Radius During Installation: | 0.125 in |
| Min. Bend Radius During Operation: | .375 in |
| Min Flexing Radius: | 0.75 in |
| RG Type: | 402 |
| Qualified Products List (QPL): | No |
| Environmental Space: | Indoor/Outdoor |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | No |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Aerial: | No |
| Suitability - Burial: | No |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1673B TIN100 | Tin | Reel | 100 ft | 612825120421 |
| 1673B TIN250 | Tin | Reel | 250 ft | 612825120438 |
| 1673B TIN500 | Tin | Reel | 500 ft | 612825120445 |
| Footnote: | E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'. |
| Notes: | Commercial non-QPL product |
| Update and Revision: | Revision Number: 0.434 Revision Date: 02-03-2025 |
