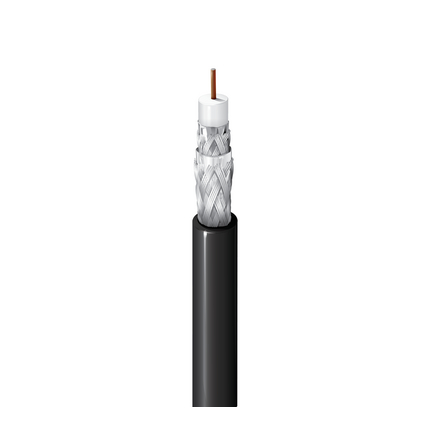

1617AP - CATV Video, RG11, 14 AWG BCCS, Quad Shield, CMP

Series 11, 14 AWG solid .064" bare copper-covered steel conductor, foam FEP insulation, Duobond® IV, aluminum braid shield (Foil + 60% Braid + Foil + 40% Braid), Solef PVDF fluorocopolymer jacket.

Product Overview

Suitable Applications: Direct Broadcast Satellite, DBS, TV, CATV, Off-Air Television, TV Antenna

Physical Characteristics (Overall)

AWGStrandingMaterialNominal DiameterNo. of Coax
14SolidBCCS - Bare Copper Covered Steel0.064 in1
Conductor Count: 1
MaterialNominal Diameter
FEP - Fluorinated Ethylene Propylene (Foam)0.274 in
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Alum / Poly / AlumBonded Duofoil®100%
Tape3Alum / Poly / AlumDuofoil®100%
Outer Jacket Material
MaterialNominal Diameter
PVDF - Polyvinylidene Fluoride0.372 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCROuter Conductor DCR
11 Ohm/1000ft3 Ohm/1000ft3 Ohm/1000ft
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Nominal Inductance
0.106 µH/ft
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz]Min. Structural Return Loss (SRL)
5 - 1000 MHz20 dB
1000 - 2250 MHz15 dB
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.2 dB/100ft
10 MHz0.5 dB/100ft
50 MHz0.9 dB/100ft
100 MHz1.3 dB/100ft
200 MHz1.9 dB/100ft
400 MHz2.8 dB/100ft
700 MHz3.9 dB/100ft
900 MHz4.7 dB/100ft
1000 MHz5 dB/100ft
1450 MHz6.7 dB/100ft
1800 MHz7.7 dB/100ft
2250 MHz8.5 dB/100ft
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.21 ns/ft83%
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)
5 MHz0.38 dB/100ft
55 MHz1.12 dB/100ft
211 MHz2.24 dB/100ft
270 MHz2.59 dB/100ft
300 MHz2.75 dB/100ft
350 MHz3.08 dB/100ft
400 MHz3.34 dB/100ft
450 MHz3.64 dB/100ft
550 MHz4.19 dB/100ft
700 MHz5.03 dB/100ft
800 MHz5.51 dB/100ft
870 MHz5.86 dB/100ft
1000 MHz6.53 dB/100ft
1450 MHz8.50 dB/100ft
1800 MHz10.0 dB/100ft
2250 MHz11.8 dB/100ft
Non-UL Voltage RatingUL Voltage Rating
300 V RMS300 V RMS

Temperature Range

Non-UL Temp Rating: 150°C
Operating Temp Range: -20°C To +150°C

Mechanical Characteristics

Bulk Cable Weight: 62 lbs/1000ft
Max Recommended Pulling Tension: 260 lbs
Min Bend Radius/Minor Axis: 3.75 in


NEC/(UL) Specification: CATVP, CMP
CEC/C(UL) Specification: CMP
RG Type: 11/U Type
Series Type: Series 11

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-07-16
MII Order #39 (China RoHS): Yes


Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS


Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 7999A
Item #ColorPutup TypeLengthUPC
1617AP 0101000BlackReel1,000 ft612825119265


Update and Revision: Revision Number: 0.188 Revision Date: 04-28-2020
Date: 2005-07-16
