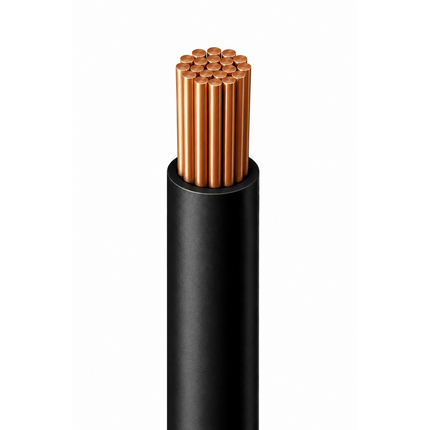

(4)TW-75 600V, 1/0 19 str AWG Bare copper, PVC insulation , 75C Wet Dry, CSA HMF SUN RES
| Suitable Applications: | CEC Power and Control Applications |
| Element | No. of Elements | Stranding | Material |
|---|---|---|---|
| Conductor(s) | 1 | 19x12 | BC - Bare Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.080 in (2.0 mm) | 0.520 in (13.2 mm) | black |
| Nom. Thickness | Nom. Diameter |
|---|---|
| 0.080 in (2.0 mm) | 0.515 in (13.1 mm) |
| Overall Cable Diameter (Nominal): | 0.520 in (13.2 mm) |
| Element | Max. Current |
|---|---|
| Conductor(s) | 150 Amps per Conductor at 30ºC |
| Voltage Rating |
|---|
| 600 V (600v) |
| Operating | Installation |
|---|---|
| -25°C To +75°C | -25°C To +75 |
| Bulk Cable Weight: | 393 lbs/1000ft (585 kg/km) |
| Environmental Suitability: | Indoor, Sunlight Resistance |
| CEC / C(UL) Compliance: | C22.2 No. 75 |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.278 Revision Date: 05-22-2026 |
