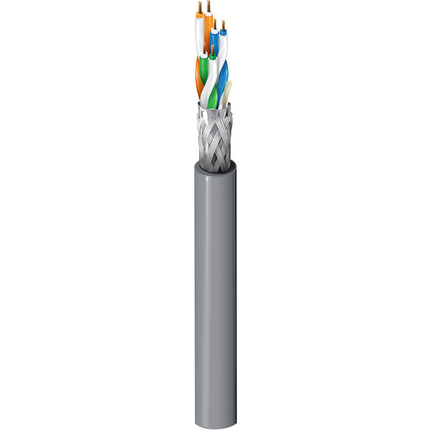

(10)RISC 6000 IBM N Cable, 28 AWG stranded (7x36) bare copper conductors, patented step polyolefin insulation, twisted pairs, overall Beldfoil® shielded + tinned copper braid shield (65% coverage), tinned copper drain wire, PVC jacket (see RISC color code chart below).
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 28 | 7x36 | BC - Bare Copper | 3 |
| Conductor Count: | 6 |
| Layer | Material | Nominal Wall Thickness |
|---|---|---|
| 1 | PP - Polypropylene | 0.01 in |
| 2 | PE - Polyethylene | 0.005 in |
| Number | Color |
|---|---|
| 1 | White over Blue & Blue over White |
| 2 | White over Orange & Orange over White |
| 3 | White over Green & Green over White |
| Type | Layer | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | 1 | Alum / Poly | Beldfoil® | 100% | TC - Tinned Copper | 28 | 7x36 |
| Braid | 2 | Tinned Copper (TC) | 65% |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.23 in | 0.02 in |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 63 Ohm/1000ft | 5.5 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 12 pF/ft | 21.5 pF/ft |
| Nominal Characteristic Impedance |
|---|
| 120 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 17 dB/100m |
| 4 MHz | 26 dB/100m |
| 10 MHz | 32 dB/100m |
| Frequency [MHz] | Min. NEXT [dB] |
|---|---|
| 1 MHz | 60 dB |
| 4 MHz | 50 dB |
| 10 MHz | 45 dB |
| 16 MHz | 40 dB |
| Max. Recommended Current [A] |
|---|
| 0.9 Amps per conductor @ 25°C A |
| UL Voltage Rating |
|---|
| 150 V RMS |
| Bulk Cable Weight: | 22 lbs/1000ft |
| Min Bend Radius/Minor Axis: | 2.5 in |
| Customer Reference Document: | IBM P/N: N Cable |
| NEC/(UL) Compliance: | CL2 |
| Other Compliance: | RJ-45 compatible |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2004-01-01 |
| MII Order #39 (China RoHS): | Yes |
| UL Flammability: | UL1685 UL Loading |
| UL voltage rating: | 150 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | UPC |
|---|---|---|
| 1538A 0081000 | Gray | 612825117612 |
| 1538A 008U1000 | Gray | 612825117605 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | US Patent # 5,220,130. Single conductors are dually insulated. The outer layer of insulation must be stripped off before attaching modular connectors. |
| Update and Revision: | Revision Number: 0.252 Revision Date: 04-28-2020 |
