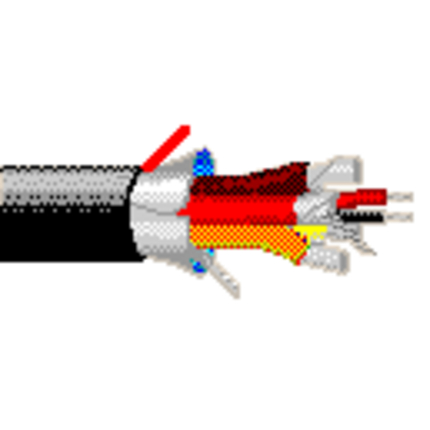

(109)Audio Snake Cable, CM-Rated, 32-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil® shield, drain, flexible PVC jacket
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 24 | 7x32 | TC - Tinned Copper | 0.024 in | 32 |
| Conductor Count: | 64 |
| Total Number of Pairs: | 32 |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PP - Polypropylene | 0.04 in | 0.008 in |
| Number | Color |
|---|---|
| 1 | Brown |
| 2 | Red |
| 3 | Orange |
| 4 | Yellow |
| 5 | Green |
| 6 | Blue |
| 7 | Purple |
| 8 | Gray |
| 9 | White |
| 10 | Black |
| 11 | Tan |
| 12 | Pink |
| 13 | Gray/Brown |
| 14 | Gray/Red |
| 15 | Gray/Orange |
| 16 | Gray/Yellow |
| 17 | Gray/Green |
| 18 | Gray/Blue |
| 19 | Gray/Purple |
| 20 | Gray/Gray |
| 21 | Gray/White |
| 22 | Gray/Black |
| 23 | Gray/Tan |
| 24 | Gray/Pink |
| 25 | Blue/Brown |
| 26 | Blue/Red |
| 27 | Blue/Orange |
| 28 | Blue/Yellow |
| 29 | Blue/Green |
| 30 | Blue/Blue |
| 31 | Blue/Purple |
| 32 | Blue/Gray |
| Color |
|---|
| Red and Black |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 0.024 in | 24 | 7x32 |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.113 in | 0.015 in |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 0.046 in | 18 | 7x26 |
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.897 in | 0.07 in | Yes |
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance |
|---|---|---|
| 15.9 Ohm/1000ft | 23.3 Ohm/1000ft | 23.3 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 31 pF/ft | 58 pF/ft |
| Nominal Inductance |
|---|
| 0.18 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
| Max. Recommended Current [A] |
|---|
| 1.05 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Operating Temperature Range: | -35°C To +75°C |
| Bulk Cable Weight: | 441 lbs/1000ft |
| Max. Pull Tension: | 550.4 lbs |
| Min. Bend Radius/Minor Axis: | 8.75 in |
| NEC/(UL) Compliance: | CM |
| CEC/C(UL) Compliance: | CM |
| CPR Euroclass: | Eca |
| Environmental Space: | Indoor (Not Riser or Plenum) |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Indoor: | Yes |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1518C B59500 | Black, Matte | Reel | 500 ft | 612825116936 |
| 1518C B591000 | Black, Matte | Reel | 1,000 ft | 612825116929 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Update and Revision: | Revision Number: 0.336 Revision Date: 12-22-2023 |
