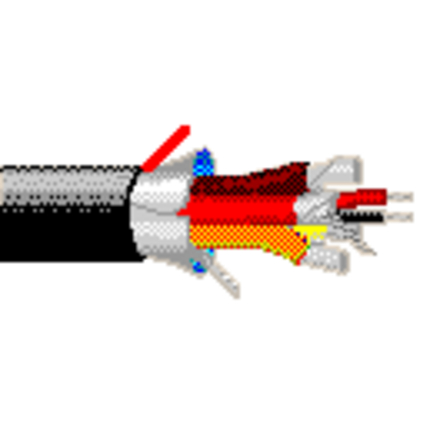

1515C - Audio Snake Cable, #24-20pr, TC, Indiv. Shielded, CM

1515C-Audio Snake Cable, #24-20pr,

Audio Snake Cable, CM-Rated, 20-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil® shield, drain, flexible PVC jacket

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
247x32TC - Tinned Copper0.024 in20
Conductor Count: 40
Total Number of Pairs: 20
Conductor Size: 24 AWG
Insulation
MaterialNominal DiameterNominal Wall Thickness
PO - Polyolefin0.04 in0.008 in
Color Chart
NumberColor
1Brown
2Red
3Orange
4Yellow
5Green
6Blue
7Purple
8Gray
9White
10Black
11Tan
12Pink
13Gray/Brown
14Gray/Red
15Gray/Orange
16Gray/Yellow
17Gray/Green
18Gray/Blue
19Gray/Purple
20Gray/Gray
Color Chart 2
Color
Red and Black
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
TapeAluminum Foil-Polyester TapeBeldfoil®100 %TC - Tinned Copper0.024 in247x32
TC - Tinned Copper
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.113 in0.015 in
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper0.046 in187x26
Aluminum/Polyester
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.71 in0.055 inYes
0.71 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Conductor DCR Conductor Resistance
15.9 Ohm/1000ft23.3 Ohm/1000ft23.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft58 pF/ft
Shielding: Individually Shielded + Overall Shield
Inductance
Nominal Inductance
0.18 µH/ft
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
1.05 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -35°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 264 lbs/1000ft
Max Recommended Pulling Tension: 352.4 lbs
Min Bend Radius/Minor Axis: 7.25 in

Standards

NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
1515C B591000Black, MatteC
1515C B59500Black, MatteC
Footnote: C - CRATE REEL PUT-UP.
