1512ENH - AUDIO ANALOG 8 PAIR 24AWG, BELDFOIL, LSZH

1512ENH-AUDIO ANALOG 8 PAIR 24AWG, BELDF

ANALOG AUDIO 8 PAIR 24AWG/0.22mm², BELDFOIL, LSZH

Product Overview

Environmental Space: Indoor
Suitable Applications: 8-pair 24AWG halogen-free multi-core cable; For analogue audio

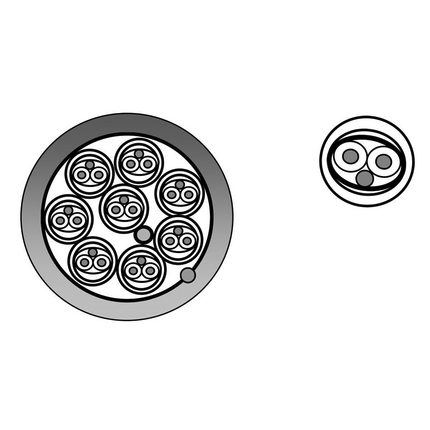

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
247x32TC - Tinned Copper7x0.20 mm
Conductor Count: 16
Total Number of Pairs: 8
Conductor Size: 24 AWG
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPolyethylene1.02 mm0.05 mm
Color Chart
NumberColor
Pair 1 t/m 8Red & Black
Inner Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
Foil, bonded to jacketAluminum / Polyester100 %Stranded tinned copper247x0.20 mmUnder shielding foil
InnerShield, Table Note: Aluminum inside
Inner Jacket Material
MaterialNominal Diameter
FRNC / LSZH2.86 mm
InnerJacket, Table Note: Jacket single element, elements are numbered 1 - 8
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
FoilAluminum/Polyester100 %Stranded tinned copper7xAWG267x0.40 mm
Aluminum/Polyester
Outer Jacket Material
MaterialColorNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
LSZH / FRNCGray11.70 mm0.40 mm1.00 mm

Construction and Dimensions

Min Elongation at Breakof Jacket: 125 %
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Max. Conductor DCRNominal Inner Shield DCR
88.5 Ohm/km52 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
92 pF/m180 pF/m
Shielding: Individually Foiled + Overall Foil
Inductance
Nominal Inductance
0.75 µH/m

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Max Recommended Pulling Tension: 610 N
Min Bend Radius During Installation: 175 mm
Min Bend Radius During Operation: 115 mm

Standards

CENELEC Compliance: EN 50290-2-20

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #Color
1512ENH.001000Gray, RAL 7032
1512ENH.00152Gray, RAL 7032
1512ENH.00500Gray, RAL 7032
1512ENH.009999Gray, RAL 7032

History

Revision Number: 3
