(4)ANALOG AUDIO 4 PAIR 24AWG/0.22mm², BELDFOIL, LSZH-C
| Suitable Applications: | 4-pair 24AWG halogen-free multi-core cable; For analogue audio |
| AWG | Stranding | Material | Construction n x D |
|---|---|---|---|
| 24 | 7x32 | TC - Tinned Copper | 7x0.20 mm |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene | 1.02 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 t/m 4 | Red & Black |
| Type | Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D | Drainwire Position |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | Stranded tinned copper | 24 | 7x0.20 mm | Under shielding foil |
| Table Notes: | Aluminum inside |
| Material | Nominal Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 2.86 mm |
| Table Notes: | Jacket single element, elements are numbered 1 - 4 |
| Type | Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | TC - Tinned Copper | 7xAWG26 | 7x0.40 mm |
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 8.90 mm | 0.40 mm | 1.00 mm |
| Description |
|---|

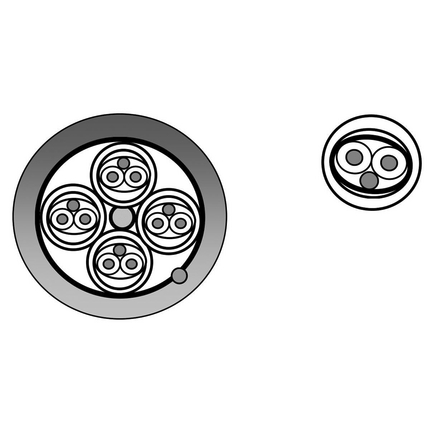

| 1 center filler + 4 pairs |
| Min Elongation at Breakof Jacket: | 125 % |
| Min Tensile Strength of Jacket: | 9 MPa |
| Max. Conductor DCR | Nominal Inner Shield DCR |
|---|---|
| 88.5 Ohm/km | 52 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 92 pF/m | 180 pF/m |
| Nominal Inductance |
|---|
| 0.75 µH/m |
| Other Temp Range: | -30 to +70 °C |
| Max. Pull Tension: | 246 N |
| Min. Bend Radius During Installation: | 89 mm |
| Min. Bend Radius During Operation: | 133.5 mm |
| CPR Euroclass: | Dca-s1,d1,a1 |
| CENELEC Compliance: | EN 50290-2-20 |
| Environmental Space: | Indoor - Euroclass Dca |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| IEC Flammability: | IEC 60332-1-2, IEC 60332-3-24 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 1510ECH.00500 | Black | Reel | 500 m | 8719605001702 |
| Update and Revision: | Revision Number: 0.191 Revision Date: 02-03-2025 |
