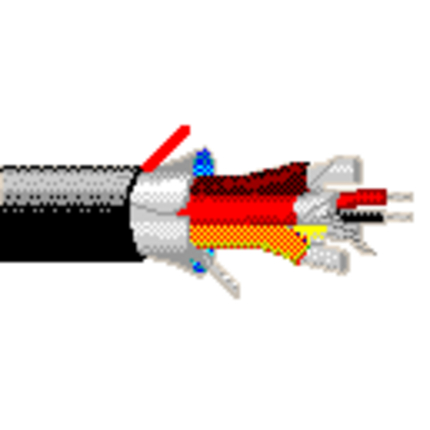

1510C - Audio Snake Cable, #24-4pr, TC, Indiv. Shielded, CM
Audio Snake Cable, CM-Rated, 4-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil® shield, drain, flexible PVC jacket
Product Overview
| Environmental Space: | Indoor (Not Riser or Plenum) |
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 24 | 7x32 | TC - Tinned Copper | 0.024 in | 4 |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Conductor Size: | 24 AWG |
Insulation
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PO - Polyolefin | 0.04 in | 0.008 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Brown |
| 2 | Red |
| 3 | Orange |
| 4 | Yellow |
Inner Shield Material
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Aluminum Foil-Polyester Tape | Beldfoil® | 100 % | TC - Tinned Copper | 0.024 in | 24 | 7x32 |
| TC - Tinned Copper |
Inner Jacket Material
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.113 in | 0.015 in |
Outer Shield Material
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Aluminum/Polyester | Beldfoil® | 100 % | TC - Tinned Copper | 0.046 in | 18 | 7x26 |
Outer Jacket Material
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.352 in | 0.037 in | Yes |
| 0.352 in |
Electrical Characteristics
Conductor DCR
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance |
|---|---|---|
| 15.9 Ohm/1000ft | 23.3 Ohm/1000ft | 23.3 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 31 pF/ft | 58 pF/ft |
| Shielding: | Individually Shielded + Overall Shield |
Inductance
| Nominal Inductance |
|---|
| 0.18 µH/ft |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66 % |
Current
| Max. Recommended Current [A] |
|---|
| 1.05 Amps per conductor @ 25°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| Operating Temp Range: | -35°C To +75°C |
Mechanical Characteristics
| Bulk Cable Weight: | 65 lbs/1000ft |
| Max Recommended Pulling Tension: | 88.4 lbs |
| Min Bend Radius/Minor Axis: | 3.5 in |
Standards
| NEC/(UL) Specification: | CM |
| CEC/C(UL) Specification: | CM |
| CPR Euroclass: | Eca |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU: | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2004-01-01 |
| CA Prop 65 (CJ for Wire & Cable): | Yes |
| MII Order #39 (China RoHS): | Yes |
Suitability
| Suitability - Indoor: | Yes |
Flammability, LS0H, Toxicity Testing
| UL voltage rating: | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N): | No |
Part Number
Variants
| Item # | Color | Footnote |
|---|---|---|
| 1510C B591000 | Black, Matte | C |
| 1510C B59500 | Black, Matte | C |
| Footnote: | C - CRATE REEL PUT-UP. |
