1509ECH - AUDIO ANALOG 2 PAIR 24AWG, BELDFOIL, LSZH-C

1509ECH-AUDIO ANALOG 2 PAIR 24AWG, BELDF

ANALOG AUDIO 2 PAIR 24AWG/0.22mm², BELDFOIL, LSZH-C

Product Overview

Environmental Space: Indoor - Euroclass Dca
Suitable Applications: 2-pair 24AWG halogen-free multi-core cable; For analogue audio

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
247x32TC - Tinned Copper7x0.20 mm
Total Number of Conductors: 4
Total Number of Pairs: 2
Conductor Size: 24 AWG
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPolyethylene1.02 mm0.05 mm
Color Chart
NumberColor
Pair 1 t/m 2Red & Black
Inner Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
Foil, bonded to jacketAluminum / Polyester100 %Stranded tinned copper247x0.20 mmUnder shielding foil
InnerShield, Table Note: Aluminum inside
Inner Jacket Material
MaterialNominal Diameter
FRNC / LSZH2.86 mm
InnerJacket, Table Note: Jacket single element, elements are numbered 1 - 2
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
FoilAluminum/Polyester100 %Stranded tinned copper7xAWG267x0.40 mm
Outer Jacket Material
MaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
LSZH / FRNC7.65 mm0.40 mm0.90 mm

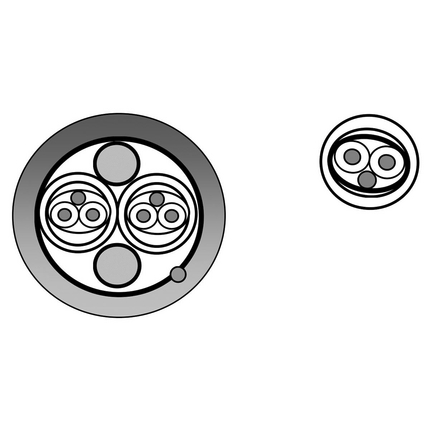

Construction and Dimensions

Cabling
Description
2 fillers + 2 pairs
Min Elongation at Breakof Jacket: 125 %
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Max. Conductor DCRNominal Inner Shield DCR
88.5 Ohm/km52 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
92 pF/m180 pF/m
Inductance
Nominal Inductance
0.75 µH/m

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Max Recommended Pulling Tension: 246 N
Min Bend Radius During Installation: 76.5 mm
Min Bend Radius During Operation: 115 mm

Standards

CPR Euroclass: Dca-s2,d1,a1
CENELEC Compliance: EN 50290-2-20

Applicable Environmental and Other Programs

EU RoHS Compliance Date (yyyy-mm-dd): 2013-06-12

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-3-24
Amt of Halogen IEC 60754-1 /EN50267-1: Zero

Part Number

Variants
Item #Color
1509ECH.011000Black
1509ECH.01500Black
1509ECH.51500Black

History

Revision Number: 2
Date: 2013-06-12
