1508E - AUDIO ANALOG 1 PAIR, 24AWG, ISTP, PVC


ANALOG AUDIO 1 PAIR, 24AWG/0.22mm², ISTP, PVC

Product Overview

Suitable Applications: 1 pair 24AWG cable for analogue audio

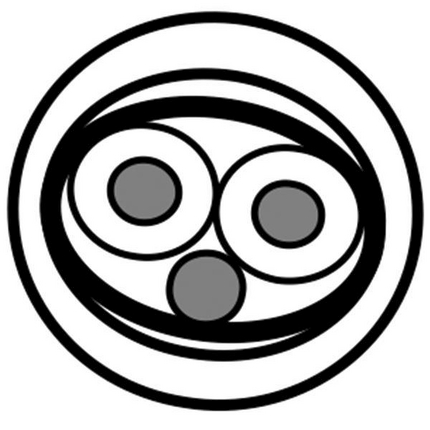

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterial
247x32TC - Tinned Copper
Conductor Count: 2
Total Number of Pairs: 1
Insulation
MaterialNominal DiameterDiameter +/- Tolerance
PE - Polyethylene1.02 mm0.05 mm
Color Chart
Color
Red
Black
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
TapeAlum / Poly100%TC - Tinned Copper24 AWG7x0.20 mmUnder shielding foil
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride3.3 mm

Electrical Characteristics

Conductor DCR
Max. Conductor DCRNominal Outer Shield DCR
78 Ohm/km52 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
100 pF/m190 pF/m
Inductance
Nominal Inductance
0.6 µH/m

Temperature Range

Other Temp Range: -20-+70 °C

Mechanical Characteristics

Max Recommended Pulling Tension: 70 N
Min Bend Radius (W/o Pulling Strength): 33 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2016-03-17

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
1508E.00500BlackReel500 m8719605001603

History

Update and Revision: Revision Number: 0.104 Revision Date: 04-08-2020
Date: 2016-03-17
